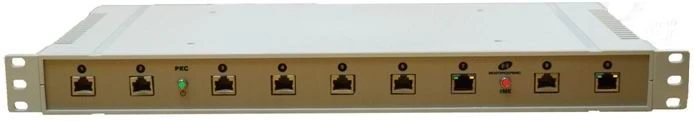

موزع قنوات الاتصال المدمجة RKS-k VABM.465.275.3

موزع قنوات الاتصال المدمجة RKS-k VABM.465.275.3

$420 - $1,500 USD
MOQ: 5 pieces

الميزات الرئيسية

Number of communication directions: 8 (16 - when using the expansion unit, the expansion unit is not included in the basic set)
Main unit construction: recessed 19" version, height - 1U
Supported connection interfaces: four-wire PM channel PRD/PRM - +4dB/-13dB; telephone communication channel; Ethernet communication channel using terminal subscriber communication devices with similar interface (MSR.E, UP.M.r, RKS-k with Ethernet adapter, etc.); Ethe connector
Four-wire PM channel PRD/PRM: rated input/output impedance: 600 ياردة³

الوصف

RKS-k is a distribution and switching device of the meeting communication equipment and is a part of the Backbone Communication Complex - MCC.
The combined channel distributor (hereinafter referred to as RKS-k) is designed for use in subdivisions of corporate meeting communication networks with the number of directions up to 8 (up to 16 when using an expansion unit).
It is possible to connect subscribers to the communication-meetings network via four-wire PM channels, telephone channels, Ethernet channels.
Provided the possibility of remote setting, configuration and control of all the functions of the distributor.

المواصفات

Number of communication directions
8 (16 - when using the expansion unit, the expansion unit is not included in the basic set)
Main unit construction
recessed 19" version, height - 1U
Supported connection interfaces
four-wire PM channel PRD/PRM - +4dB/-13dB; telephone communication channel; Ethernet communication channel using terminal subscriber communication devices with similar interface (MSR.E, UP.M.r, RKS-k with Ethernet adapter, etc.); Ethe connector
Four-wire PM channel PRD/PRM: rated input/output impedance
600 ياردة³
Four-wire PRD/PPM PM channel: nominal input/output signal level, dB
+4.3 - -13/ -13 - +4.3
Input/output signal level adjustment range, dB
±7
Noise cancellation threshold adjustment range, dB
-28…0
Telephone inputs/outputs ("line")
symmetrical with transformer isolation
Data transmission medium
local area network (Ethernet)
Connection protocol
TCP/IP
Reproducible frequency range, Hz
300-3500
Input supply voltage
? 220V/50Hz
Backup supply voltage
= 48?
Power consumption
not more than 100W
Output voltage and total current on contacts for supplying MSR.16 and MSR.D from RKS-k unit
48 V/ 0.63A
