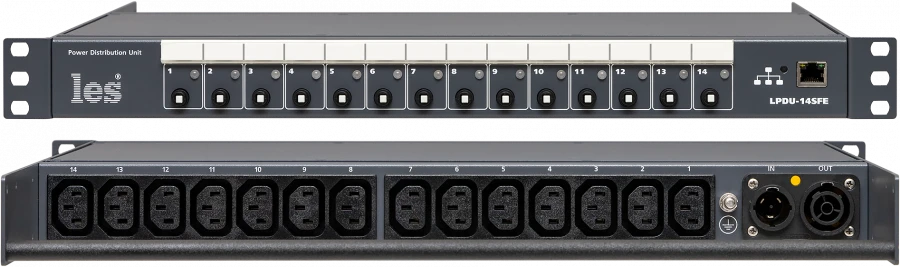

14-Output Power Distribution Unit LPDU-14SFE for Remote Control Applications

Low-Voltage Electrical Panels

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Power distribution unit for 14 IEC C13 outputs. The voltage input and pass-through output are made on powerCON 16A connectors. All outputs are numbered and placed on the rear panel, have overload protection - automatic fuse for 5A and LED indication of the presence of voltage.

An EMI filter is installed on the input. Control is carried out remotely via Ethernet, it is possible to set an individual time delay to switch on each output, switch off and switch on any output, get information about the voltage value at the input, the amount of current flowing and the total power consumption. The side mounting angles can be rotated by 180°, a discharge rod and a cable connector are included.

The warranty period is 36 months.

Specifications

Power supply voltage

230 V

Maximum load on each output

5 A

Maximum total load at the LPDU input

16 A

Electromagnetic interference suppression at 1 MHz (typical)

Type of output connectors

IEC 60320 C13

Number of outputs

14 pcs

PowerCON (Neutrik) input-output connector model

NAC3PX

Supported Ethernet network type

100 Base-TX/10 Base-T

Ethernet connector type

RJ-45

Device control interface

Web interface

Overall dimensions (W - H - D)

483...44 mm

Weight

4.44 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
