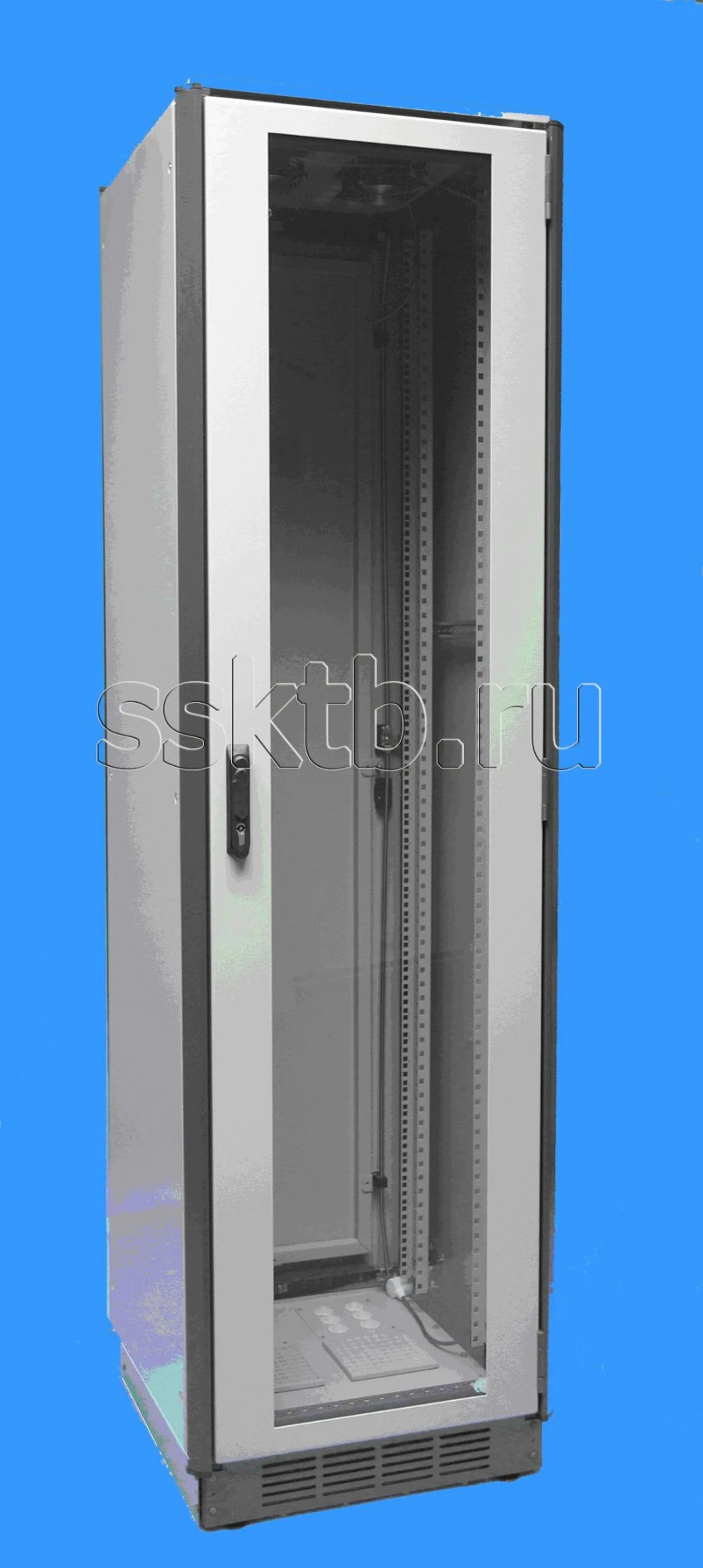

19” Telecommunication Cabinet 42U for Equipment with IP54 Protection

Area of application: Designed to accommodate the equipment of telecommunication systems in the execution of various standards and configurations of 19",23", metric, SCU, used in public communications networks, in local communications networks, in computer networks The cabinet has a welded construction. The side walls are securely fixed with screws. As standard, the cabinets are equipped with two types of doors at the back and front: metal and glass (Triplex glass).

All doors are equipped with a three-point lock and a rotary handle. The doors have both right and left-hand hinges. It is possible to equip a metal panel instead of one door.

The base and roof of the cupboards have spaces for the installation of a ventilation system. Up to 6 fans can be installed in the 800 depth cabinets. The base and roof of the cabinet have a cable gland - 320x86 for a 600mm wide cabinet The cabinet can be equipped with a brush gland.

The cabinet is equipped with screw supports. Possible installation of swivelling castors...
