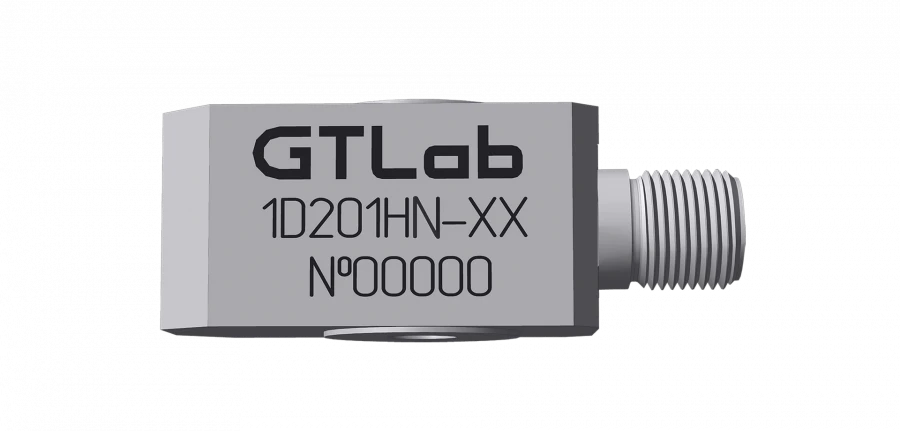

1D201HN Digital 3-Axis MEMS Accelerometer with RS485 Output for Precise Measurements
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Digital three-component MEMS accelerometers 1D201HN with RS485 output.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Weight
160 ?
Housing material
stainless steel
Number of measuring axes
3 (x, y, z)
Consumption current
? 20 mA
Supply voltage ± 10 %
+ (5 ... 12) ?
Output
RS-485, Modbus RTU protocol
Operating temperature range
- 40 ... +85°?
Relative transverse conversion ratio
< 5%
Maximum impact (peak)
± 1,000 m/s2
Operating frequency range - frequency response unevenness ± 3 dB
2 ... 1 000 Hz | 3 ... 1 000 | Hz 5 ... 1 000 | Hz 10 ... 1 000 Hz (user adjustable)
LF
200,500,1000 Hz (user adjustable)
VHF
2, 3, 5, 10 Hz (user adjustable)
Measured temperature range of the integrated sensor (± 2 °C)
- 40 ... +85°?
Detector
Swing, Peak, RMS
Measurement mode
vibration acceleration, vibration velocity, vibration displacement
Measured amplitude range of vibration accelerations
0 ...100 m/s2 | 0 ...200 m/s2 | 0 ...400 m/s2 (user adjustable)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
