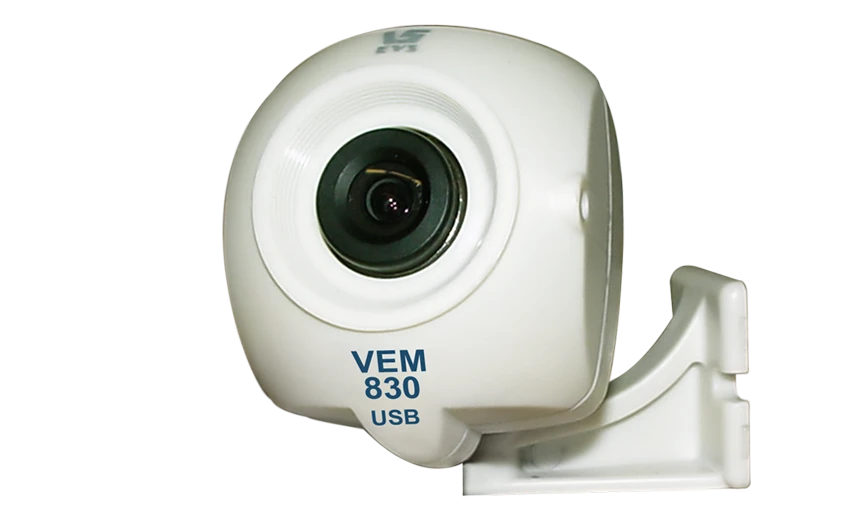

3-Megapixel Color TV Camera with USB 2.0 Interface VEM-830

Available for Import

3-Megapixel Color TV Camera for Indoor Surveillance (VEM-830)

Television Video Cameras

Manufacturer: EVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for indoor observation of objects at air temperature from 0 ° C to +50 ° C, relative humidity up to 90%, atmospheric pressure from 720 to 780 mm Hg. It can be used in medicine, households, vision systems with image output to a computer display. It works in a wide range of working illuminations. If necessary, it is possible to control the parameters of the camera from the computer.

Specifications

Image decomposition parameters

2048x1536 - 9 Hz; 1920x1080 - 13 Hz; 1600x1200 - 17 Hz; 1280x1024 - 22 Hz; (1280x720, 1024x768) - 31 Hz; 800x600 - 42 Hz; 640x480 - 46 Hz. )

Photodetector

OV8810 1/3.2" format (4.614 X 3.506 mm)

Resolution

At least 1100 TV lines

Operating system

WIN 98, ME, 2000, XP

Synchronization

Internal

Sensitivity (lux)

Without IR filter not worse than 0,1 lux, With IR filter - not worse than 0,3 lux at signal to noise ratio equal to 10 and lens with relative aperture 1:1,2.

Maximum illumination of the observed object

Not less than 100,000 lux at the ratio of the "vertical blur" voltage to the object signal voltage of 10%

Drinking chamber

From the USB 2.0 socket of the computer

Consumption power

Not more than 0.85 W

Weight

Not more than 50 grams

External dimensions without lens

40 x 46 x 74 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
