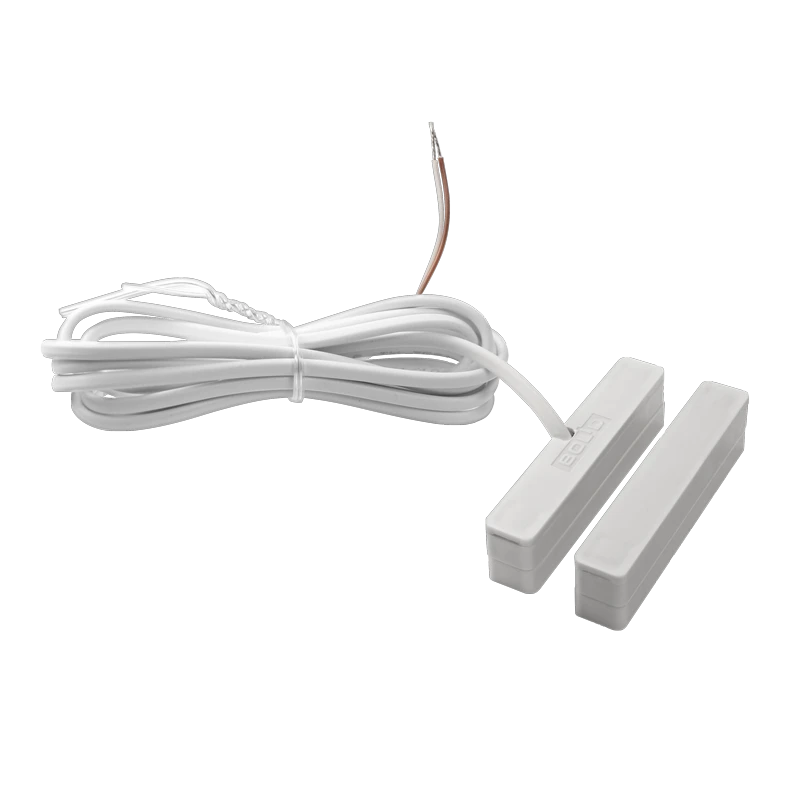

Addressable Magnetic Contact Security Detector C2000-CMK Version 01 (IP68) ACDR.425113.003

Addressable Magnetic Contact Security Detector C2000-CMK Version 01 (IP68) ACDR.425113.003

Brand: BOLID

$3 - $18 USD

MOQ: 500 pieces

Key Features

Overall dimensions of the device (processing unit): not more than 56x10x8 mm

Wire length: 1.5 m

Consumption current: max. 0.5 mA

Guaranteed contact condition when the magnet and the processing unit are in the same plane (closed): Less than 10 mm

Supplier Information

BOLID CJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from BOLID

Addressable Expander for Non-Addressable Detectors S2000-AR1 Version 02 ACDR.426461.001-02

$9-$30

Perimeter Intrusion Detection Controller "C2000-Perimeter" ACDR.426469.024

$90-$300

C2000-BI Indicator Block with RS485 Interface, Model ACDR.426469.015-06

$90-$300

Vibration Security Detector "Vulkan" ACDR.425139.002

$9-$36

Signal Control Block "S2000-SP1" ACDR.425412.001

$15-$48

Addressable Remote Start Device UDP 513-3AM Version 02

$9-$30

Security and Fire Control Panel "C2000M" ACDR.426469.027

$90-$300

Addressable Signal Expander for 8 Zones - S2000-AP8 ACDR.426461.003

$15-$42

Flow Control and Indication Unit "Potok-BKI 2RS485" ACDR.426469.034-01

$90-$300

Distribution-Isolating Block "BRIZ-T" ACDR.426475.004-04

$15-$48

Vibrating Addressable Security Detector "S2000-V" ACDR.425139.001

$9-$30

Signal-Start Block for Smoke Ventilation Control C2000-SP4/24 ACDR.425412.016

$15-$42

Security and Fire Alarm Control Panel "C2000M Version 02" ACDR.426469.027-02

$150-$480

Signal-Starting Block for Smoke Ventilation Control C2000-SP4/220 ACDR.425412.015

$15-$48

Addressable Signal-Start Block "C2000-SP2 Version 02" ACDR.425412.004-02

$15-$48

LCD Keyboard for "Orion" Security System - C2000-K ACDR.426469.007

$15-$48

Optical-Electronic Addressable Intrusion Detector "C2000-IK Mod.03" ACDR.425152.001-03

$15-$48

Addressable Expander for Integrated Security System Orion - S2000-AP2 version 02

$9-$30

Surface-Mounted Sound Addressable Security Detector "S2000-ST version 04" ACDR.425132.001-04

$9-$30

Protocol Converter S2000-PP ACDR.426469.020

$42-$150

Description

Applied in security alarm systems and is designed to protect objects from unauthorised entry. Designed to work with controllers two-wire communication line as part of an integrated security system "Orion".

Specifications

Overall dimensions of the device (processing unit)

not more than 56x10x8 mm

Wire length

1.5 m

Consumption current

max. 0.5 mA

Guaranteed contact condition when the magnet and the processing unit are in the same plane (closed)

Less than 10 mm

Guaranteed contact condition when magnet and processing unit are in the same plane (open)

More than 50 mm

Number of detectors to be connected in the DPLS

up to 127 pcs

Maximum active resistance of DPLS wires

Not more than 100 ohms

Minimum insulation resistance between DPLS wires

at least 50 kOhm

Protection degree of the shell according to GOST 14254-2015

IP68

Operating temperature range

-45 to +55 °?

Overall dimensions of the device (magnet)

not more than 56x10x8 mm

Overall dimensions of the device (spacer)

not more than 56x10x6 mm

Instrument weight

not more than 0,03 kg

Average lifetime of the device

10 kVAr

Power supply voltage (DPLS)

8...11 thousand m³
