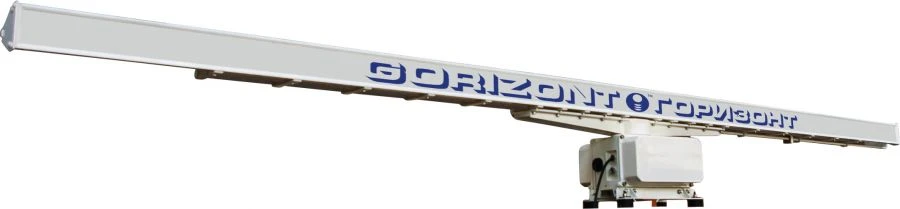

Airfield Surveillance Radar Station "Aksai-M" for Accurate Monitoring and Safety

Radio Navigation Equipment

Manufacturer: GORIZONT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Aksai-M radar airfield survey station X-band, 3 cm. 21 ft antenna Rotation drive 60 rpm. transmitter power 10 kV Resolution 0.43 degrees Range resolution of 15 metres or less Provides: Effective means of interference protection against hydrometeors and unintentional interference of the same type of radars.

Operating detection ranges - from 50 to 5000 m. Resolution in azimuth and range at a distance on a scale of 2 km:. not worse than 15 m.

Detection probability - not worse than 0.9. RLI update period - not more than 1 s (60 rpm). Angle of view - 360° (with the possibility of sectoral view within specified limits to exclude unwanted reflections from local objects).

Automatic and manual input to escort targets in a given area of responsibility.

Specifications

Maximum detection range

Range resolution, not less than

15 m

Azimuth resolution, deg

0.42

Maximum instrument range

Frequency range

9380...9440

Nutrition

380 V

Power consumption

3800 W

Transmitter power

10 kW

Receiver sensitivity

-131

Minimum detection range

Flat grinder, Specialised grinder m

EPR of target

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
