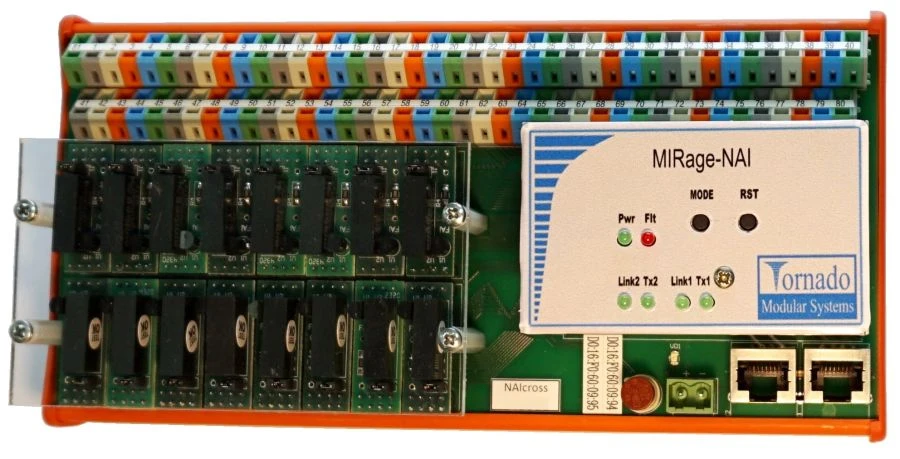

Analog Input Device with 16 Standard Current Signals, MIRage-NAI Available for Import

Analog Input Device with 16 Standard Current Signals for Data Acquisition

Automatic Control Devices
Manufacturer: Tornado Modular Systems LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The MIRage-NAI-S devices are designed to input analogue DC signals from sensors with passive current output (powered by the device) and convert them into digital form when building distributed information and control systems. The devices are designed for measurement of unified current values and transmission of measured values over twisted pair via redundant Ethernet 10/100 twisted pair interface using ModBus protocol. MIRage-NAI-S devices have 16 differential input measurement channels (IR).MIRage-NAI-S devices are designed for creation of automated process control systems (APCS) in various industries.

Specifications

Number of measuring channels
16 pcs
Interface type
Ethernet 10/100BaseTX - 2 channels
Request response time at 100 Mbit network speed, no more than
2
Data transfer rate
10
Data exchange protocol
Modbus TCP/UDP slave
External supply voltage (+/- 15%)
24 V
Consumption current without taking into account sensors, max.
105 mA
Galvanic insulation
Group
Overall dimensions
216x108x111 mm
Weight, not more
700 year
Mechanical design
DIN rail mounting
Wago terminal block, conductor cross-section up to
2.5 mm²
Operating temperature range
-25...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
