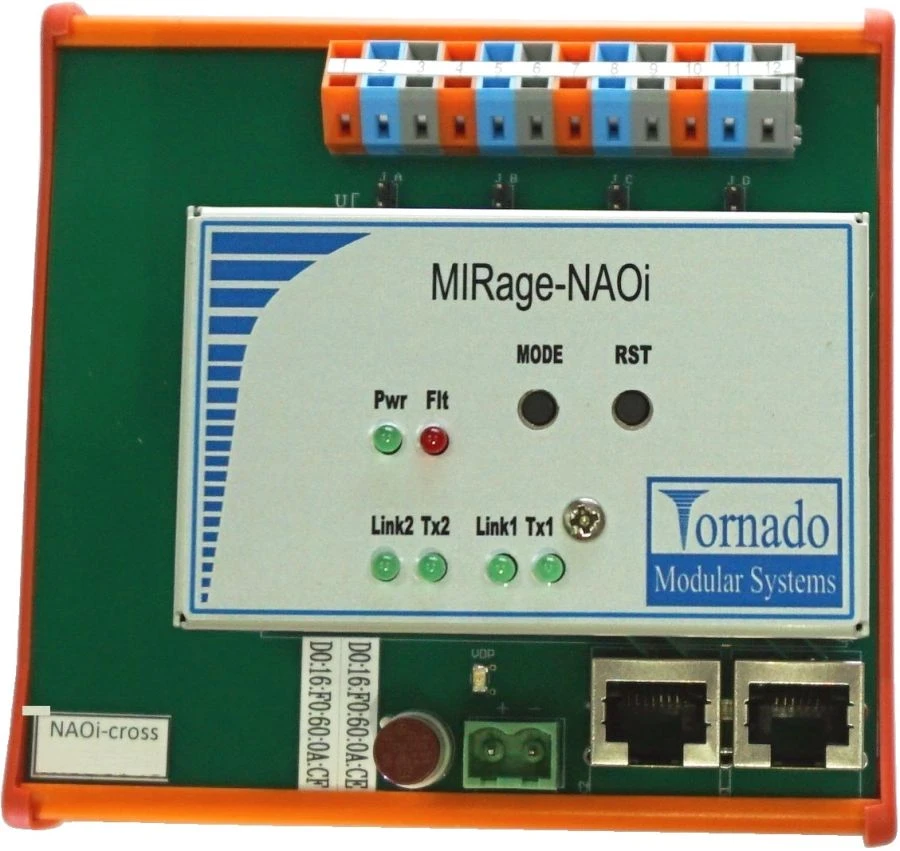

Analog Output Device with 4 Unified Current/Voltage Signals - MIRage-NAOi Available for Import

Analog Output Device with 4 Channels for Signal Transmission - MIRage-NAOi

Automatic Control Devices
Manufacturer: Tornado Modular Systems LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The MIRage-NAOi devices are analogue signal output devices. MIRage-NAOi devices have 4 analogue measurement channels (AO) designed to generate analogue voltage or current signals. The channels are galvanically isolated from each other and from the system part. The signals are generated under the control of commands transmitted over a redundant Ethernet10/100 twisted pair digital interface using the ModBus protocol. MIRage-NAOi devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Operating temperature range
-25...70 °C
Wago terminal block, conductor cross-section up to
2.5 mm²
Mechanical design
DIN rail mounting
Weight, not more
450 year
Overall dimensions
114x108x111 mm
Galvanic insulation
Individual
Consumption current without taking into account sensors, max.
110 mA
External supply voltage (+/- 15%)
24 V
Data exchange protocol
Modbus TCP/UDP slave
Data transfer rate
10
Request response time at 100 Mbit network speed, no more than
2
Interface type
Ethernet 10/100BaseTX - 2 channels
Number of measuring channels
4 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
