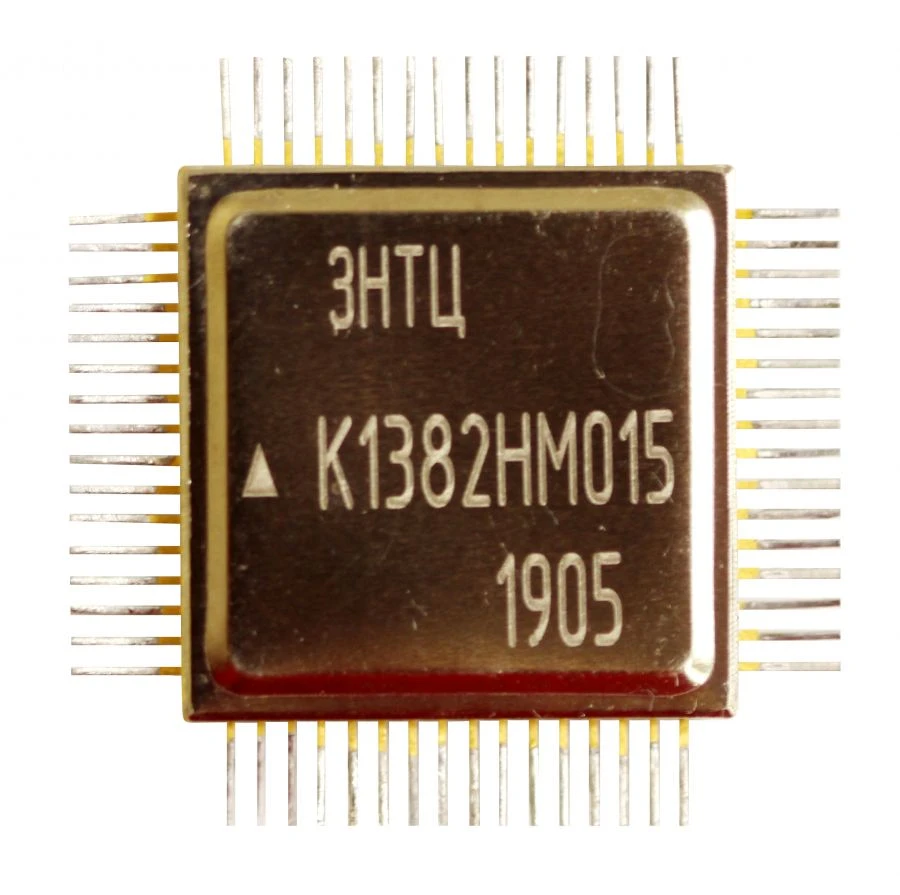

Angular Position Sensor Signal Converter Chip K1382NM015 for Accurate Data Processing

Electronic ICs

Manufacturer:ZNTC OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Converter of signals of angular position sensors. Microcircuits are designed to convert the sine-cosine signal from various position sensors into a linear digital code corresponding to the phase of the sine-cosine signal (calculates the arctangent of the input signals). Advantages: high resolution; wide set of interfaces, multi-turn mode; support for sensors like sine-cosine rotary and linear transformers; BIC setup parameters are written to non-volatile memory via SPI interface.

Specifications

Type of product according to PP RF 616

Integrated electronic circuits

ADC digit capacity 1

13...16

ADC digit capacity 2

13...16

Number of ADC channels 2, type ??

1 pcs

Number of ADC channels 1, type ??

1 pcs

Input condensate, pF

10000000

Technology

CMOS

Housing type

H18.64-2B

Voltage

5 V

Minimum operating temperature, Degree Celsius

minus 60

Maximum operating temperature

125 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
