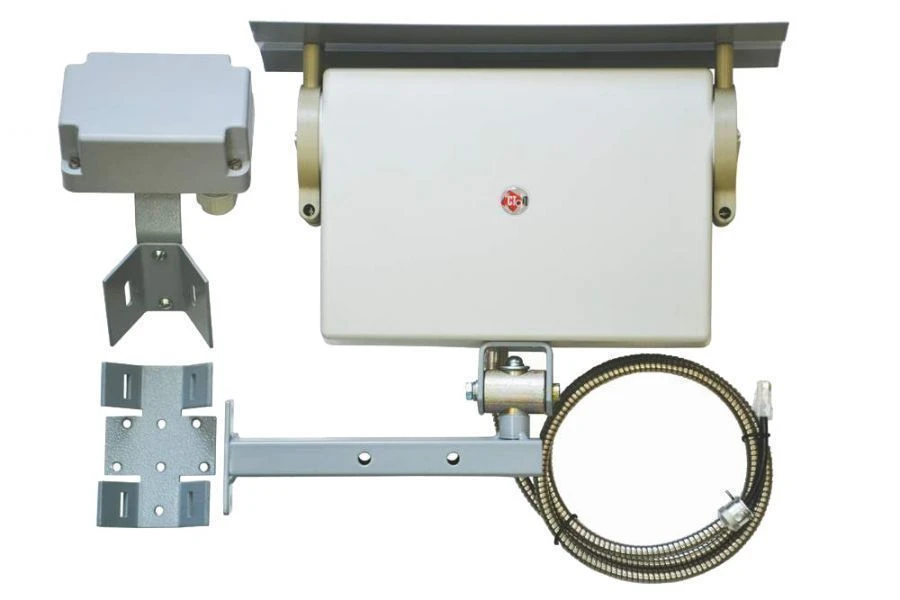

Antiris Single-Position Radio Wave Security Detectors for Human Detection

Intrusion and Fire Detectors

Manufacturer: ST-PERIMETER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Single-position security radio-wave detectors ANTIRIS are designed to detect a person crossing the detection zone (ZO) or moving in it. The detector models are distinguished by the operating frequency and the size of the detection zone. The detectors without index "A" remain operable at temperatures from 233 to 338 deg.

K (from minus 40 deg. C to 65 deg. C).

The detectors with index "A" remain operable at temperatures from 213 to 338 deg C (from minus 60 deg C to 65 deg C). K (from minus 60 degrees C to plus 65 degrees C). Detectors with index "B" are made in explosion-protected version and remain operable at temperatures from 223 to 338 deg C (from minus 50 deg C to plus 65 deg C).

K (from minus 50 degrees C to plus 65 degrees C). The detectors use non-registerable operating frequencies 24.15 and 5.775 GHz.

Specifications

Duration of alarm notification

Overall dimensions of transceiver with bracket and canopy

315x280x100 mm

Consumption current at 24 V supply voltage for versions with indices "01", "02" and without indices, max.

0,045; for version "A" 0,1; for version "B" 0,15 A

Equipment options

With index "K" - complete with a set of mounting parts KMC-4, providing installation of the transceiver on flat vertical surfaces; with index "C" - complete with a set of mounting parts KMC-5, providing installation of detector blocks.

Modification options

"01" and "02" - industrial version; without index - commercial version; "A" - Arctic version; "B" - explosion-proof version.

Detection zone length at maximum range

for 5.8-20 20; for 5.8-40 and 24-40 40; for 24-80 80 m

Operating frequency

for 5.8-20 and 5.8-40 5.8; for 24-40 and 24-80 24.

Maximum width of the detection area

for 5.8-20, not more than 2.5; for 5.8-40, not less than 20; for 24-40, not more than 1.2; for 24-80, not more than 3.2. m

Maximum height of the sign

For 5.8-20 not less than 6; for 5.8-40 not less than 20; for 24-40 not less than 25; for 24-80 not less than 10. m

Operating voltage range of the power supply

10,2-30; for version "B" 17-30 V
