ARCTIC XL Refrigeration Unit - Reliable Cooling & Heating Solution

ARCTIC XL Refrigeration Unit for Stable Temperature Control in Transport

Manufacturer:AC-TRADE LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Refrigerators of ARCTIC M series are designed to maintain a stable temperature in the volume of isothermal van for the transport of chilled and deep frozen products on light trucks with the volume of isothermal van from 36 m to 50 m and maintain a temperature of -18 C/+18C, provided that the coefficient of thermal conductivity of the walls of the van does not exceed 0.5 W/m2 deg. Heat exchangers are coated with a thin hydrophilic film, this coating reduces the formation of condensation on the surface of the heat exchanger and increases the longevity of operation.

Specifications

Cooling capacity
3650W at tC -18 / 5300W at tC 0 (in van)
Heat output
2000 W at tC +18 (in van)
Air flow rate at the condenser
3300
Air flow rate at the evaporator
2400

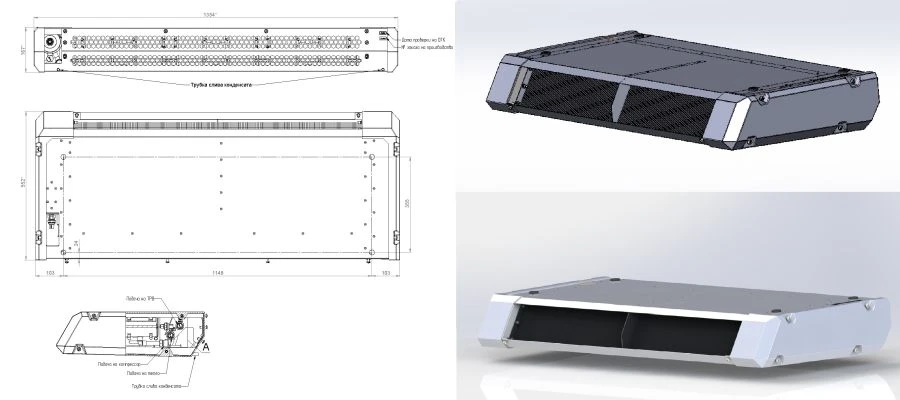

Overall dimensions of the condenser unit
(WDR) - 1413 x 398 x 503 mm
Overall dimensions of the evaporator unit
(WDR) - 1354 x 552 x 167 mm
