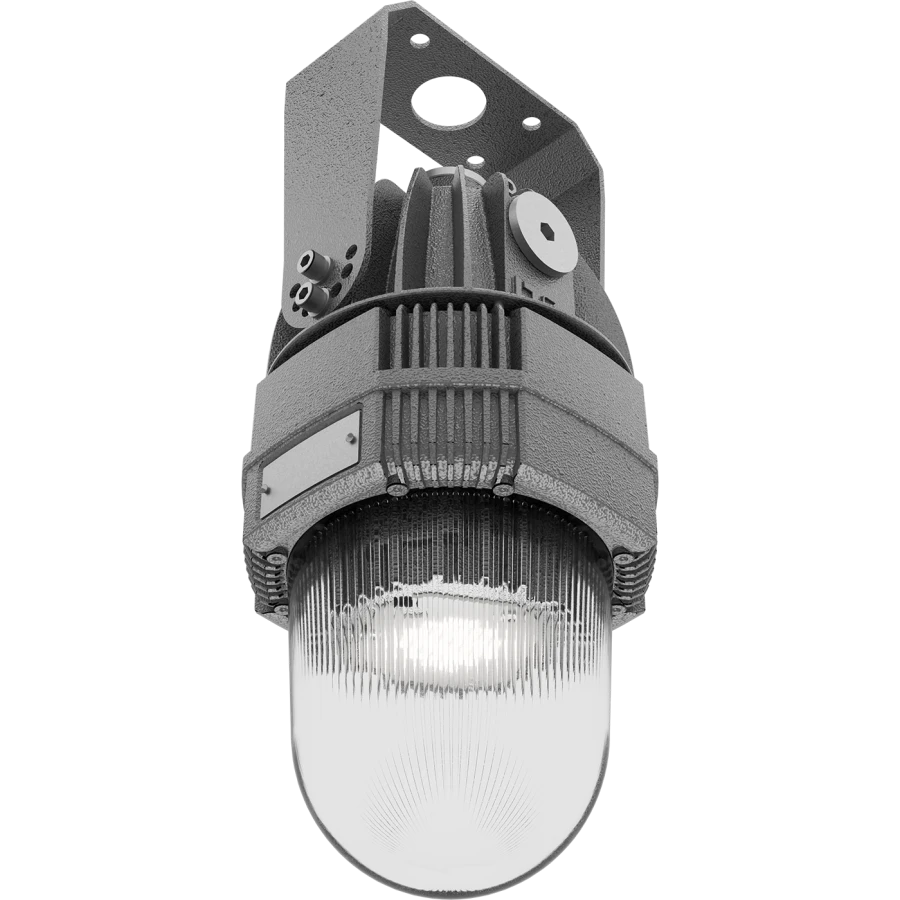

ATLAS ECO LED 15 Explosion-Proof LED Light Fixture for Safe Industrial Lighting

LED Ceiling & Wall Lights

Manufacturer: LLC "MGK "LIGHT TECHNOLOGIES"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Series of explosion-proof luminaires ATLAS ECO LED Ex for outdoor and indoor lighting of enterprises of chemical, fuel and energy and mining industries, designed to replace luminaires with incandescent lamps up to 200 W, as well as gas-discharge DRL 80, DRL 150, MGL70, DNAT 70. The luminaires have increased mechanical strength, are characterised by the convenience of electrical connection and installation, as well as have the possibility of maintenance.

Specifications

Lamp type

LEDs

Type of luminaire

Point

Type of explosion protection

1 Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

Explosion-proof

Armoured glass

Mounting type

staple

Type of supply current

AC/DC

Climatic execution (according to GOST 15150-69)

UHL1

Rated supply voltage

ACE: 90V - 305V DC: 127V - 300V; DC: 12V±10%

IK code

IK08/7 J

Luminous flux ripple factor

<1%

Overall color rendering index

Correlated color temperature

3000...5000 K

Lower operating temperature value

-60 °C

Upper operating temperature value

55 °C

Form

Round

Diffuser material

Tempered glass

Housing material

Aluminum

Degree of protection (IP)

IP 66

Power factor

>0,95

Protection class against electric shock

Height

365 mm

Width

150 mm

Power consumption

12...16 W

Luminous flux

1980...2420 lm

Length

160 mm

Net weight

4.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
