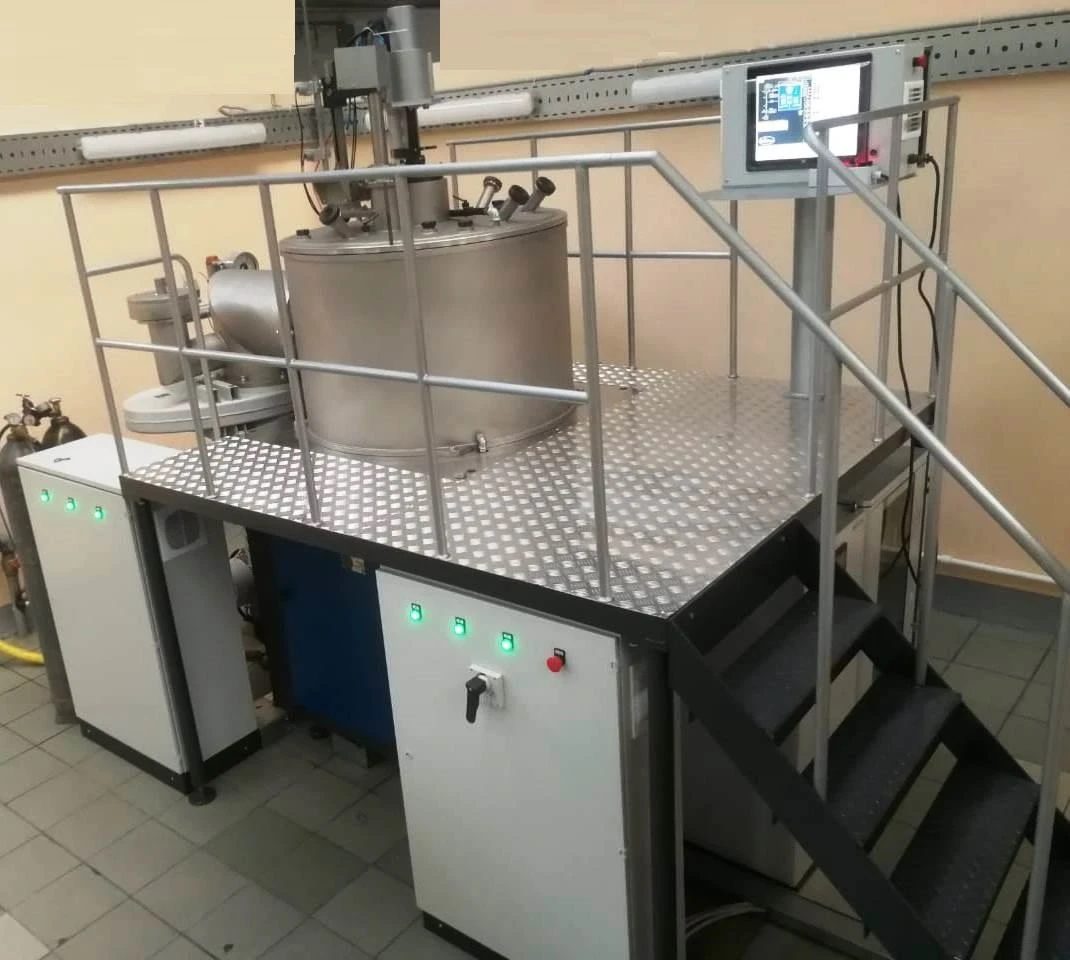

Automated Coating System "MAP-2" for Ion-Plasma Coatings

Available for Import

Automated Coating System "MAP-2" for High-Performance Coatings

Thermal Processing Units

Manufacturer: National Research Center "Kurchatov Institute" - VIAM

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for applying heat-resistant, corrosion-resistant and erosion-resistant coatings on GTE turbine and compressor blades, hard coatings from metal compounds on cutting tools and GTE parts, and also allows to carry out ionic surface treatment processes - ion etching and ionic saturation of the treated surface with metal ions.

Specifications

Capacity for vapourised cathode material, kg/h

0.2...0.25

Vapour material utilisation factor, max.

15 %

Speed of coating condensation on the substrate, µm/minute

not more than 0.4

Maximum dimensions of sputtering area on workpieces, (diameter × height)

not more than 125x200 mm

Pressure in the chamber during ionisation cleaning of products

Not more than 0.665

Pressure in the chamber during coating, metallic / cermet coating

(0.0266 - 0.00665) / (0.266 - 0.0665)

Duration of pumping to a pressure of 0,026 Pa

no more than 60

Cooling water flow rate

No more than 2

Installed capacity

75 kW

Characteristics of vacuum chamber (inner diameter / height / chamber volume), mm / mm / l

1000 / 700 / 600

Number of pieces to be processed simultaneously

96 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
