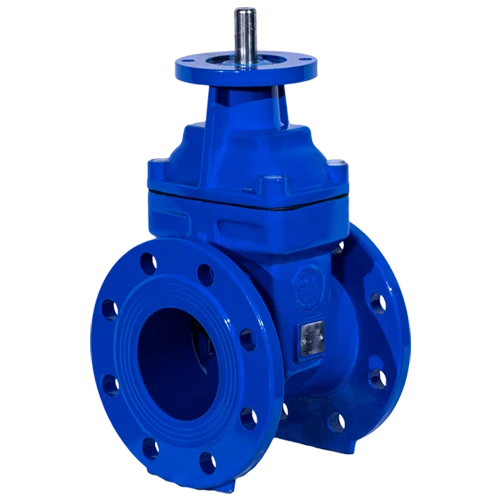

Automated Gate Valve with Rubber Coated Wedge for Electric Drive Ridval

Automated Gate Valve with Rubber Coated Wedge for Electric Drive Ridval

Brand: Ridval

$900 - $3,000 USD

MOQ: 2 pieces

Key Features

Nominal diameter (DN): 1000 mm

Material of construction of the locking mechanism: Cast iron

Gate valve type: Wedge

Type of sealing of moving parts against the external environment: Glands

Supplier Information

IRTYSH LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from Ridval

Flanged Gate Valve with Rubberized Wedge Ridval

$900-$3,000

Interflange Disc Valve for Complete Flow Control - Ridval

$30-$300

Flanged Disc Valve for Flow Control - Ridval

$150-$1,800

Description

The gate valve is designed for automated complete shut-off of the working medium in technological and main pipelines. Working medium: water in cold and hot water supply systems, sea water, air, glycol mixtures, etc.

Specifications

Nominal diameter (DN)

1000 mm

Material of construction of the locking mechanism

Cast iron

Gate valve type

Wedge

Type of sealing of moving parts against the external environment

Glands

Type of connection to the pipeline

Flanged

Hull molding type

molded

Type of seal in the gate

Elastic seal

Nominal pressure (PN), MPa (kgf/cm)

1,6 (16,0)

Spindle type

Non-retractable
