Available for Import

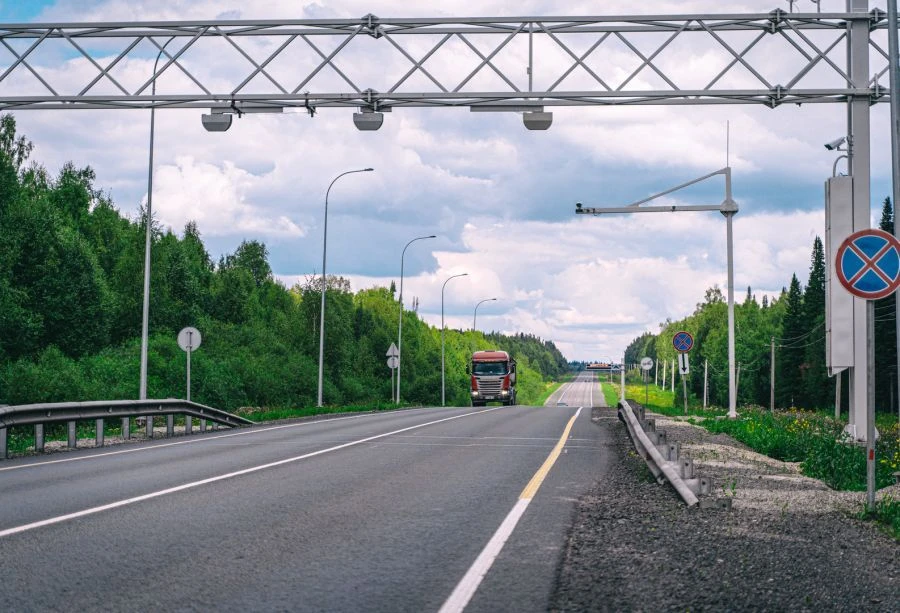

Automatic Vehicle Weight and Dimension Control System APVGK for Efficient Monitoring
Manufacturer:
ASI LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for measuring in automatic mode the mass of moving vehicles, loads on axles and groups of axles of vehicles, overall dimensions (length, width, height), speed and centre-to-centre distances of vehicles.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Operating ambient air temperature range
-50...60 °C
Measuring range of inter-axle distances, including between the outermost axles
500...32000 mm
Measuring range of TC axle loads
100...35000 kg
Measuring range of total vehicle mass *N× , where N is the number of vehicle axles
100...35000 kg
Measuring range of TC length
500...50000 mm
Width measurement range
500...5000 mm
Measuring range of vehicle height
500...5000 mm
Working range of measurements of speeds of vehicles passing the weight and dimensional control zone
1...140
AC mains supply voltage operating range
100...242 V
Operating conditions at relative air humidity
100 %
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
