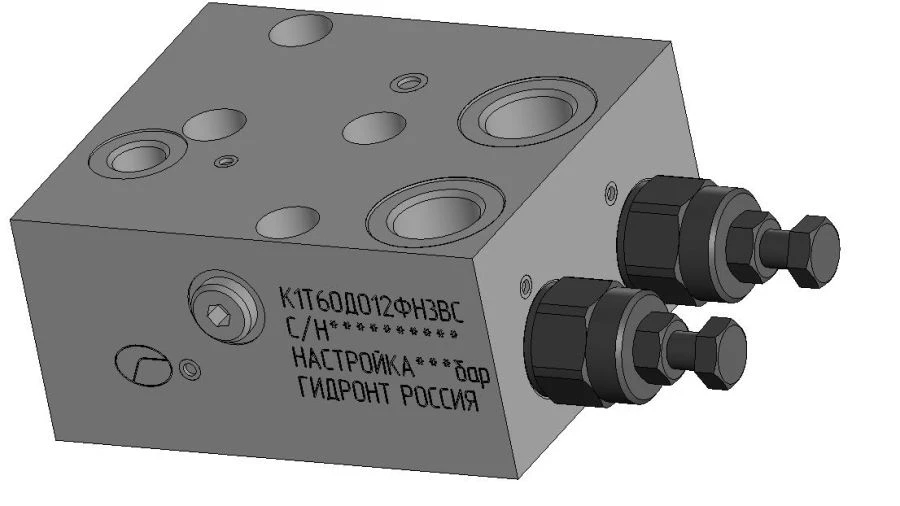

Brake Valve K1T60D012FN3VS-01 for Efficient Flow Regulation

Brake valve is a flow control device providing free passage of flow in one direction and dynamic braking of flow in the opposite direction, with blocking of return flow in the absence of control signal. The valves are designed to hold hydraulic motors in static position under load. Field of application - hydraulic drives of presses, machine tools, foundry and casting machines, mobile special machinery and other hydroficated equipment. Valve K1T60D012FN3BC-01 with nominal flow rate 60 l/min and maximum pressure 350 bar for flange mounting on gerotor hydraulic motors with connection thread G1/2 BSPP. Valve setting range 100-350 bar.
