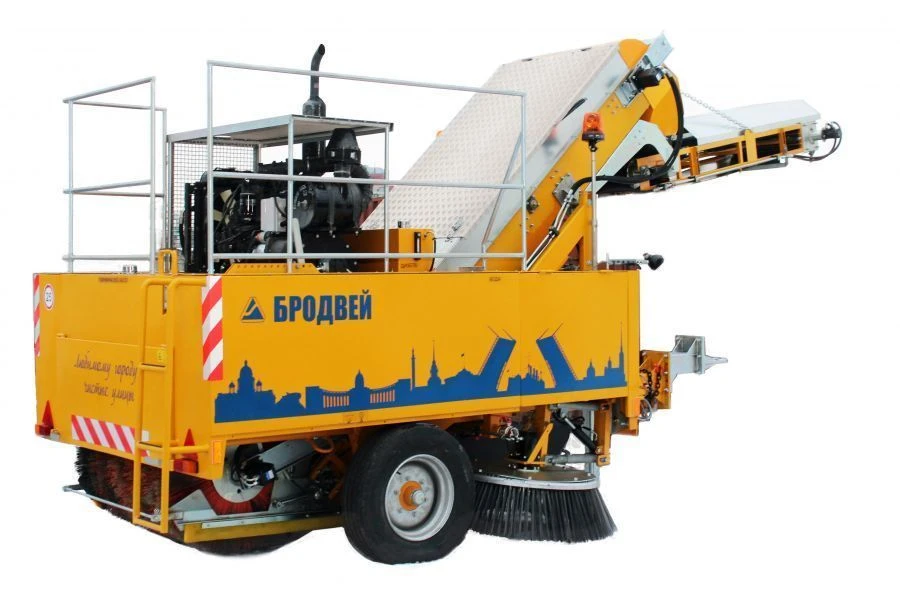

Broadway Special Sweeping Trailer 8896-0000010 for Effective Road Cleaning

Specialized Transport Trailers

Manufacturer: BROADWAY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Trailer special sweeping and cleaning elevator type Broadway is designed for efficient, mechanised and high-speed road cleaning.

The principle of operation is mechanical picking and direct loading of sweepings into the body of a towing tipper.

For these sweepers are not afraid of uneven roads and potholes, because the mechanical brush on bad roads sweeps out debris more effectively than a machine with vacuum pick-up.

The design of the irrigation system allows the use of saline solution. Can be operated in sub-zero temperatures*.

Broadway can be towed by any dump truck equipped with a towbar.

Specifications

Type of product according to PP RF 616

Trailers and semi-trailers other, not included in other groupings

Base tractor

Dump truck with a body

Equipment

sweeping and sweeping equipment, power plant

Type

special sweeping and cleaning vehicle

Wheel arrangement

Uniaxial

Weight

3850 kg

Maximum permissible weight

4990 kg

Overall dimensions

6660x2220x3550

Management

control panel in the cab of a dump truck

Rear brush

brush pressure adjustment;diameter - 900 mm;cylindrical; width - 1200 mm.

Diameter of side brushes

1250 mm

Hydraulic system

Volume of hydraulic oil tank - 210 litres; hydraulic motors for brushes drive; elevator; conveyor; pressure - 220 bar; capacity - 70 l/min; gear hydraulic pump is installed on the motor shaft.

Irrigation system pressure

1...4

Water pump capacity, l/min

Volume of water tanks (2 pcs.)

1200 l

Conveyor belt

Rotating frame;speed adjustment

Length of conveying belt on swivelling rollers

3300 mm

Conveyor belt width

700 mm

Элеватор

Stainless metal protection;rubber scrapers; fixed on belts

Brake system

abs;pneumatic

Engine type

Diesel

Capacity, cm3/min

1.2 t

Sweeping speed

Sweeping width

1700...3000 mm

Transport speed

Motor power

60 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
