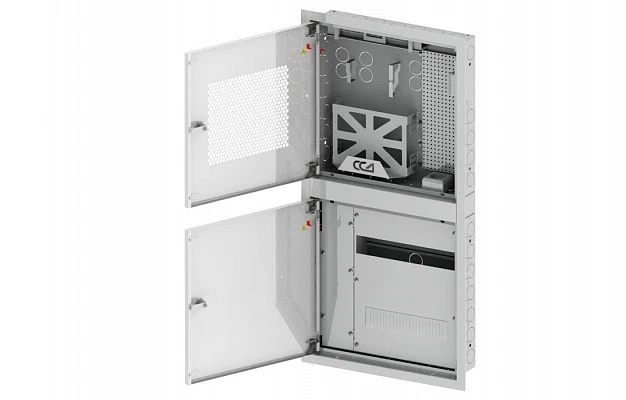

Built-in Apartment Distribution Cabinet SHRV-K for Electrical Equipment Housing

Designed to accommodate electrical, passive and active network equipment, including wireless access. It consists of a two-section enclosure and an external hatch consisting of an overhead frame with two doors made of 1.0 mm thick steel. The upper and lower sections of the enclosure are connected to each other by means of a spacer.

The upper door has a perforation for cooling the active equipment installed inside and for passing the radio signal from the WI-FI router. The lower door is all-metal. To prevent unauthorised access inside the cabinet, both doors are equipped with locks.

Two-sectional body of the cabinet on four sides, as well as on the back wall has breakable cable glands with a diameter of 36mm. The enclosure is supplied with 6 rubber cable entry plugs. On each side wall as well as on the rear wall of the enclosure there are 8.5 mm diameter holes for fixing the enclosure in the wall with wall plugs.

On the rear wall inside the upper section of the cabinet has a regul...
