Carbon D 10500 Disc Harrow - Semi-Trailed Machine Available for Import

Carbon D 10500 Disc Harrow for Effective Soil Preparation

Disc Harrows
Manufacturer: BLOCK OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

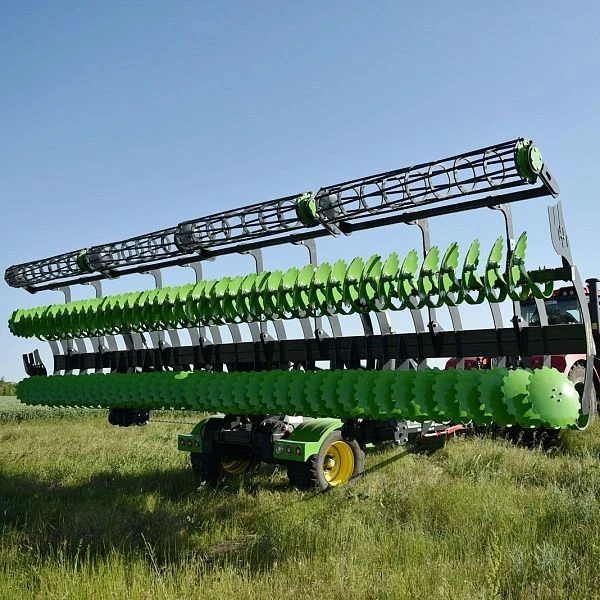

The Carbon D 10500 disc harrow is a semi-trailed machine with two rows of spherical discs mounted on individual spring struts. It is designed to be equipped with a track consisting of rollers. The harrow is equipped with deflectors on the left and right sides of the harrow to prevent the formation of soil ridges between adjacent passes of the machine. The harrow is designed for use in agricultural production in various soil and climatic zones for cultivation of soil not clogged with stones to a depth of up to 15 cm. Working width is 10.5 m, consists of the following main parts: head frame with linkage axle and parking support, central frame to which left and right wings are hinged and two working planes, left and right.

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
1200 mm
Weight
7800 kg
Number of implement rows
2 pcs
Material of working elements
50hgfa steel, 30MnB5 steel
Material of frame structures
09g2s steel, 40x steel
Harrow type
Carbon disk harrows
Working width
10.5 m
Height
1500 mm
Width
10500 mm
Length
9500 mm
Operating speed
15
Capacity per hour
15.75
Number of working orans
82 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
