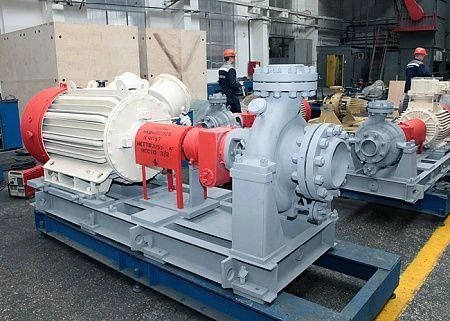

Centrifugal Oil Pump (Console Type) ON2 Model for Efficient Liquid Transfer

Pumps centrifugal oil (cantilever, type ON2 according to GOST 32601) marks TKA,NK, NKV, TKAv, NKv, TKAm and pumping units on their basis are designed for pumping oil, liquefied hydrocarbon gases and petroleum products and other liquids with density not more than 1800 kg/m3 and density 1000 kg/m3 for pumps in hermetic version. Pumped liquid temperature from 193 to 673K (from minus 80°C to plus 400°C). Pumped liquid temperature for hermetic pumps from 233 to 373K (minus 40°C to plus 100°C).

Material design of the flow section: 20L, 25L, 20GML, 20X5ML, 20X13L, 15X14NL, 12X18N9TL, 12X18N12M3TL. The units consist of a pump, electric motor, coupling, coupling guard, base plate (frame), mechanical seal piping systems, pump, instrumentation. Pumps are produced in climatic versions T, U, UHL, placement categories 1,2,3,4 according to GOST15150.

They are manufactured individually according to the customer's project.
