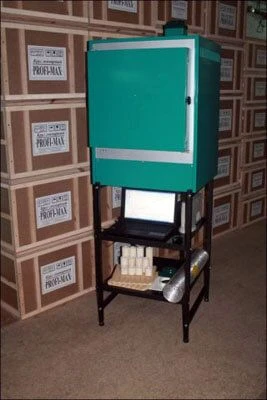

Ceramic Firing Kiln "Mefisto-50" for Professional Material Processing

Electric Resistance Furnaces

Manufacturer: BLOCK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Furnace for firing "Mefisto-50" is designed for heat treatment of metals, ceramics, glass, other materials. It is supplied complete with KilnControl PC controller, with computer control.

Technical characteristics of the ceramic firing furnace "Mefisto-50" Temperature control range in the electric furnace, °?: From 50 to 1100 Time of heating up to maximum temperature, min, not more: 80 Temperature setting discreteness, °?: 1 Dimensions of the working chamber, mm, not less: 345x355x415 Overall dimensions, mm, not more: 650x880x750 Weight, kg, not more than 80 Power consumption, kW, not more than 5,0

Operating temperature of the furnace up to 1150 degrees Celsius Useful volume of the firing chamber 50 litres Powered by single-phase network 220V Installed power - 5 kW The working chamber is made of MKRV, with closed heating elements. The furnace is equipped with an autonomous extractor hood.

Specifications

Type of product according to PP RF 616

Electric resistance furnaces

Mark

Mefisto

Model

SBVVBG

Useful volume of the firing chamber

SBVVBG l

Electric Furnace Temperature Control Range

50...1100 °C

Time of heating up to maximum temperature, min, not more

80 °C

Temperature setting discreteness

1 °C

Weight

80 kg

Overall dimensions: length

650 mm

Overall dimensions: width

850 mm

Overall dimensions: height

750 mm

Working chamber dimensions: length

345 mm

Working chamber dimensions: width

355 mm

Dimensions of the oven: height

415 mm

Furnace operating temperature

1150 °C

Power supply from single-phase network

220 V

Working chamber

Made of ICRP, with closed heating elements.

Exhaust

Oven equipped with autonomous extractor hood

Completeness

Electric muffle furnace, transport packing, USB/USB cable, computer PID controller complete (controller board, triac power controller, thermocouple XA), computer programme, furnace stand, self-contained extraction adapter.

Power

5 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
