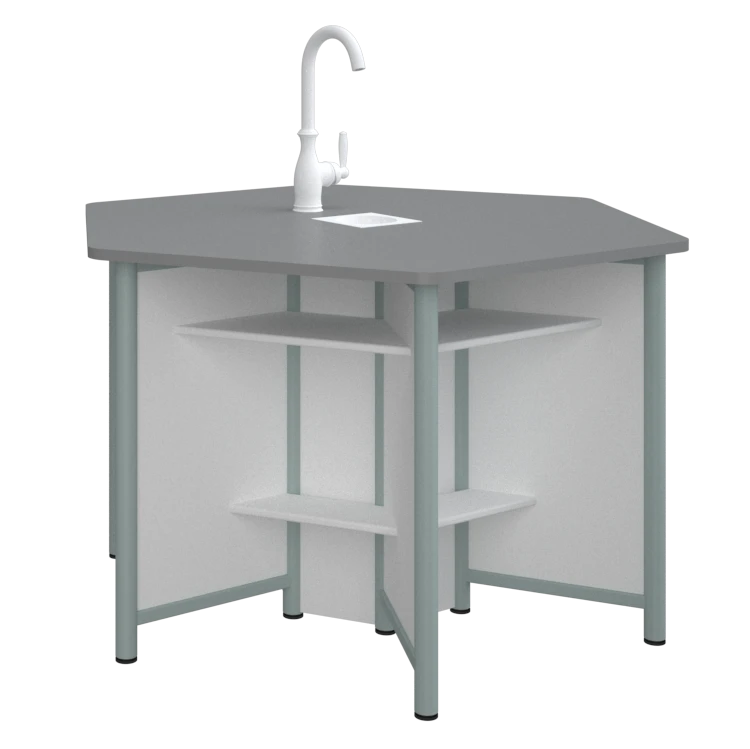

Chemical Laboratory Table with Shelves for Efficient Workspace

Size 1360x1200x750mm. Support dimensions 728x420, made of profile tube 25x25x1,5 mm and round tube with a diameter of 40 mm. The round pipe is arranged vertically, the profile pipe horizontally.

The support has a one-piece welded construction. In the profile tube of the support there are 4 through holes for euro screws for fixing the lspc panel: two from the bottom and two from the top. At the bottom of the support in the round tube are installed threaded plugs with adjustable supports with a diameter of 32mm to compensate for unevenness of the floor.

Table top LDFP 22mm. Bottom and top covered with plastic. Holes for sink and tap.

Cabinet: Shelf for legs 435x150 6pcs, LDFP 16mm. Attached to the frame spacers by means of reinforced shelf holders. Shelf for accessories: 528x230 6pcs, 16mm chipboard.

Attached to the frame spacers using reinforced shelf holders, to the cabinet walls using Euro screws 6x50. Cabinet walls: 728x200 6pcs, LDFP 16mm. Spacers for the frame: 624x336 6pcs, chipboard 16mm.
