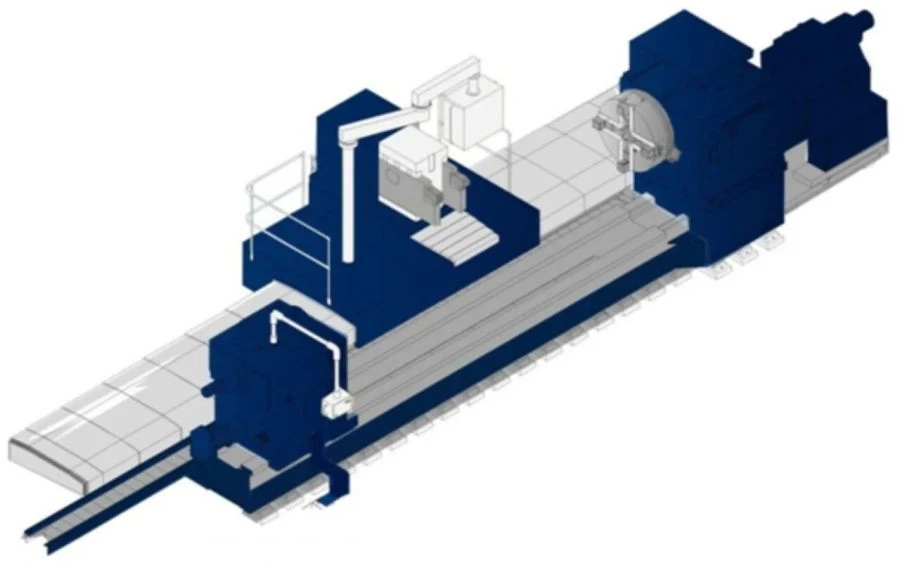

CNC Lathe Machine CA1800C240F4 for Precision Machining of Long Parts

CNC Metal Lathes

Manufacturer:SASTA PJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The lathe with feed-through slides provides optimum machining technology for long workpieces. Due to the fact that the slides are able to bypass the lunettes, go behind the spindle headstock and tailstock, the workpiece is machined along its entire length without re-setting. The machine bed is made of solid cast iron sections, with 4 or 5 guideways: 2 or 3 rolling guides for slides, 2 sliding guides for tailstock and lunettes.

The sections are fastened together with high-strength bolts and pins. Spindle headstock with "C" axis. Range switching is automatic.

Speed control within each range is stepless. Caliper. Two slides move along the Z-axis on rolling guides.

The slides are fitted with sliders that move in the X axis. The right-hand caliper has an integral Y-axis on rolling guides.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Machine weight, not more

187000 kg

Length

33200 mm

Width

3500 mm

Height

3000 mm

Moving the tailstock quill

300

Main drive power

110 kW

Accuracy class according to GOST 8-82

"?"

Largest diameter of rotation of the workpiece above the bed

1800

Largest diameter of the workpiece above the slide

1200

Maximum length of the workpiece to be machined in the centers

24000

Maximum weight of the workpiece to be mounted in the chuck/center

1000/20000 kg

Spindle bore diameter

150

Specific spindle end dimension according to DIN 55026

?20

Spindle speed limits

1-400 rpm

Speed control

stepless

Maximum torque

32000 Nm

Support in X1, X2 axes

720

Support in axes Z1, Z2

14700

C-axis support

± 360 deg.

Y-axis support (right)

±150 mm

Working feed ranges in X, Z, Y axes

1-5000 mm/min

Working feed rate range in the C-axis

0.05-2 rpm

Accelerated movements in X1, X2, Y axes

6000 mm/min

Accelerated movements in axes Z1, Z2

10000 mm/min

Number of turret tool positions on the left slide

4 pcs

Largest cross-section of the turret toolholder on the left slide

40x40 mm

Type of turret tool attachment on the left slide

DIN 69881

Tool change time per turret position on the left slide

7.5

Tool change time to the furthest turret position on the left slide

Number of turret tool positions on the right slide

B1/B8 2100/900 MHz pcs

Largest cross-section of the turret toolholder on the right-hand slide

32?32

Type of turret tool attachment on the right-hand slide

BMT85

Tool change time per turret position on the right slide

4.06

Tool change time to the furthest turret position on the right slide

5.62

Diameter of tailstock quill

400

Internal taper in the quill of the tailstock

Morse 6

Clamping force of the tailstock quill pin

5-70 kN

Type of tailstock quill drive

Hydraulic

Maximum longitudinal compensation of the quill at the temperature expansion of the tailstock

Speed of rapid movements of the tailstock

1500 mm/min

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
