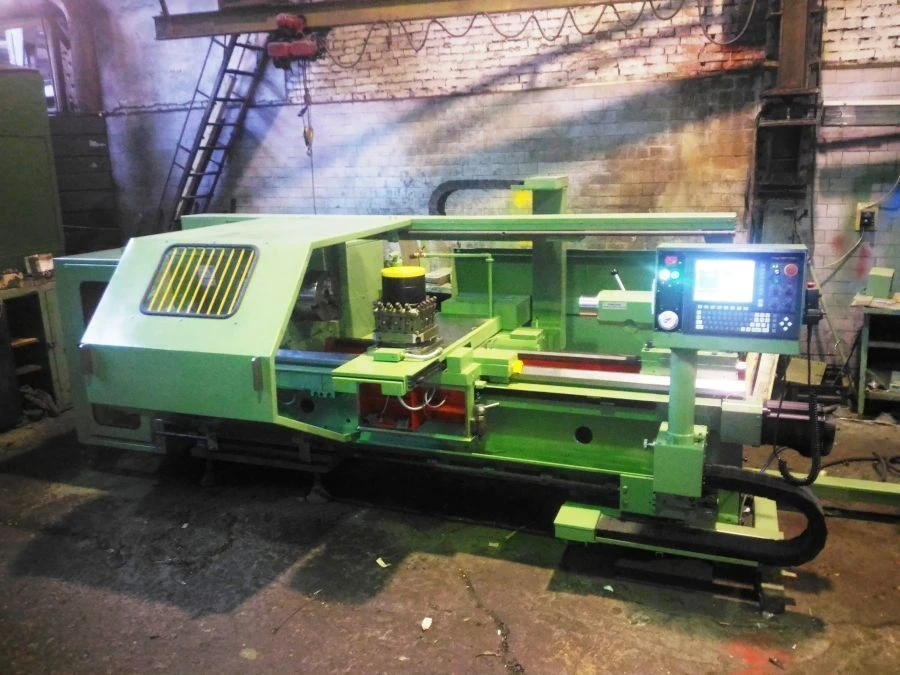

CNC Lathe Machine with Chuck Center 16R30F3-3 for Precision Turning

CNC Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

CNC chuck centre lathe 16R30F3

Description

Chuck centre lathe with CNC is designed for turning in centres and chuck of parts with straight, stepped, curved profile, threading.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Machine weight, not more

8500 kg

Height

2100 mm

Width

3460 mm

Length

6800 mm

Speed limits for rapid movements of the slide in the Z axis

9500 mm/min

Speed limits for rapid X-axis slide movements

7500 mm/min

Working feed rate limits of the slide in the Z axis

1-4000 mm/min

X-axis feed rate limits of the caliper

1-4000 mm/min

Spindle speed limits

8...2000

Number of simultaneously controlled coordinate axes

2 pcs

Number of controllable coordinate axes

2 pcs

Single-sided positioning accuracy in the X axis

16 microns

Single-sided positioning accuracy in the Z axis

48 microns

Discreteness of the X-axis travel reference

1.0 µm

Discreteness of the Z-axis travel reference

1.0 µm

Maximum travel of the slide in the Z axis

2760 mm

Maximum movement of the slide in the X axis

600 mm

Height of the tool to be mounted

32 mm

Longest workpiece length

2760 mm

Maximum length of the workpiece to be mounted

2900 mm

Machine accuracy class according to GOST8-82

Roughness of the sample product of the external cylindrical surface after finish machining

Ra 2.5 µm

Total power of electric motors installed on the machine tool

40 kW

Main motion drive power

30 kW

Largest diameter of the workpiece to be mounted above the bed

670 mm

Largest diameter of the workpiece to be machined above the bed

630 mm

Largest diameter of the workpiece to be mounted and machined above the slide

320 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
