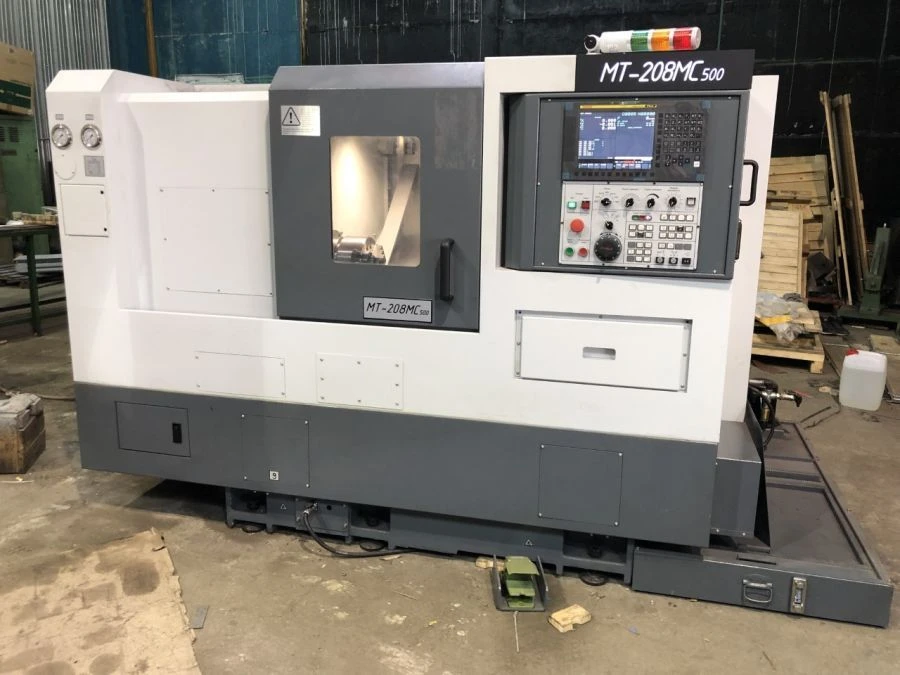

CNC Lathe Machining Center MT-208MS for Precision Component Manufacturing

CNC Metal Lathes

Manufacturer: KSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The CNC lathe machining centre is a CNC turret lathe with an inclined bed and is designed for the production of parts of the body of rotation type with the possibility of milling. The machine allows to perform turning of external and internal surfaces, drilling, tapping, milling. The machine is equipped with a 12 position turret. The maximum spindle speed is 6000 rpm, there is a built-in tailstock, coolant supply system and chip conveyor.

Specifications

Type of product according to PP RF 616

Turning machining centers single spindle and multi-spindle)

Machine weight, not more

3500 kg

Height

1800 mm

Width

1200 mm

Length

2500 mm

Machining diameter

250 mm

Bar diameter

52 mm

Spindle bore diameter

62 mm

Number of tools in the turret

B1/B8 2100/900 MHz pcs

Spindle speed

4800

Maximum machining length

500 mm

Diameter of rotation above the bed

500 mm

Type

cnc turning machining centre

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
