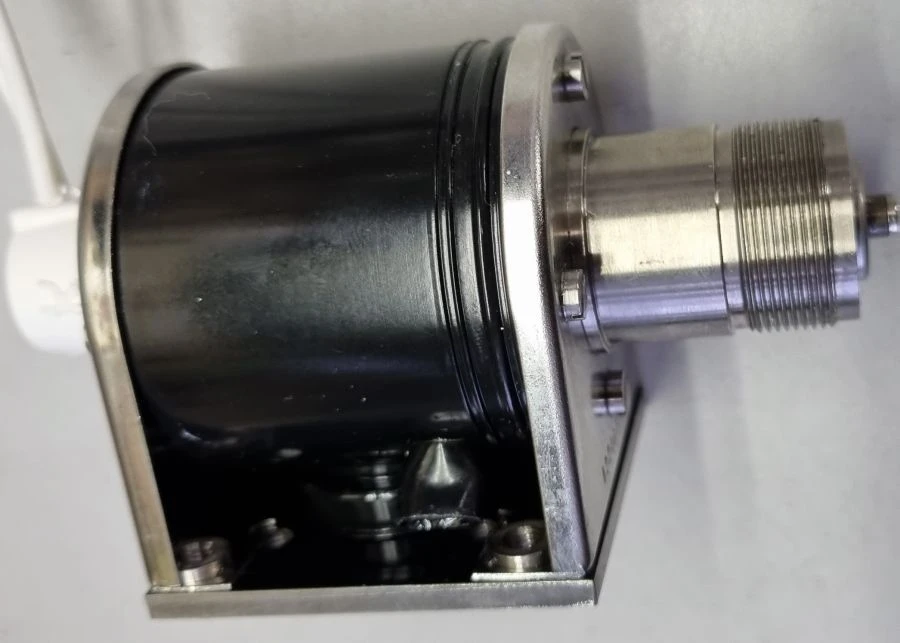

Coaxial Impulse Magnetron MI-482 for High-Power Applications

Microwave Tubes & Amplifiers

Manufacturer:PLUTON OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Coaxial magnetron MI-482 of pulse action, magnetically shielded and packaged design with output power not less than 1,5 kW with frequency tuning in the range of 14000 - 14300 MHz, intended for use as a generator of microwave oscillations.

Specifications

Filament voltage

9.4...11 V

Filament current

1.5...2 A

Weight

0.6 kg

Dimensions, DxWxH

113x52x60 mm

Anode pulse current

1.5...3.25 A

Anode voltage

2.25...2.75 kV

Pulsed power output

1.5 kW

Operating frequency range

14...14.3

Gamma percent MTBF

200
