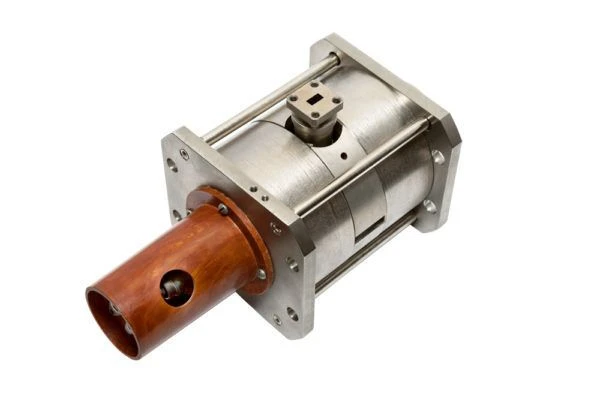

Coaxial Pulsed Magnetron MI-457 for High-Power Industrial Applications

Microwave Tubes & Amplifiers

Manufacturer: PLUTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Pulse magnetron MI-457-IH Pulse magnetron MI-457-I Pulsed magnetron MI-457-IM

Description

Coaxial magnetron MI-457 of pulse action, packaged partially magnetically shielded design with output pulse power of not less than 50 kW and average output power of 100 W with fast frequency hopping at a rate of 600 cycles/s in the band up to 1000 MHz in the 8-mm wavelength range.Magnetron is designed for use in all-weather radars of civil aviation, in equipment for national economic purposes (and for export), as a generator of microwave oscillations. It can be used in other radars with observance of operating conditions.

Specifications

Filament voltage

12...13.2 V

Filament current

3.2...3.6 A

Weight

3.8 kg

Dimensions, DxWxH

226x115x92 mm

Gamma percent MTBF

500

Anode current

9.6...12.6 A

Anode voltage

13...15.5 kV

Output pulse power

50...80 kW

Operating frequency range

35...36
