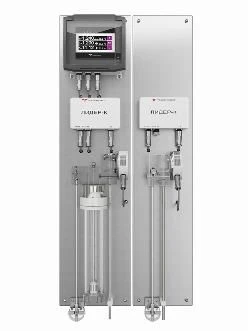

Combined Analyzers for Measuring Electrical Conductivity, Solids Content, and Temperature - LEADER with LEADER-K Block

Available for Import

Combined Analyzers for Measuring Electrical Conductivity and Temperature - LEADER with LEADER-K Block

Liquid Analysis Devices

Manufacturer: TECHNOINSTRUMENT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Analysers are designed for measurements of specific electrical conductivity, salt content and temperature of liquids

Specifications

Measuring range of salt content, mg/dm3

From 0,02 to 1200 (DK-5 and DK-7), from 0,02 to 14000 (DK-6).

Measurement range of DEP, ?S/cm

From 0,025 to 2500 (DK-5 and DK-7), from 0,25 to 25000 (DK-6).

Measurement mode

continuous

Recording and viewing the archive of abnormal situations

Armoured glass

Automatic sensor contamination control

Armoured glass

Supply voltage, V

187 to 242 VAC, 24 to 46 VAC (optional), 21.6 to 26.4 VDC (optional)

Output interfaces

Current outputs, RS-485, Ethernet, dry contact relays, HART

Calibration methods

Input of constant, by conductometer, by reference solution

Possibility of remote location of the hydraulic block from the indication unit

Yes, up to 1,000 meters

Sensor design

Flow-through (DK-5, DK-6, DK-7), Submersible (DK-7)

Automatic control of sensor tolerances during calibration

Armoured glass

Presence of temperature compensation for calculation of DEP25

Yes, double (for pure water and impurities)

Number of channels

1...3 pcs

The way information is presented

Display

Principle of action, method

Contact conductometry

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
