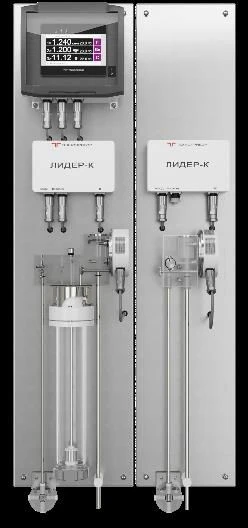

Combined Analyzers LEADER with LEADER-APK Block

Available for Import

Combined Analyzers LEADER for pH, Ammonia Measurement and Temperature Control

Liquid Analysis Devices

Manufacturer: TECHNOINSTRUMENT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Analysers are designed for measurements of pH value of hydrogen ion activity, mass concentration of ammonia, pH value of hydrogen ion activity reduced to 25 degrees, and temperature of liquids

Specifications

Measuring range of mass concentration of ammonia, µg/dm3

20 to 35000 (APK-1)

Measuring range, pH

pH25 7.5 to 10.2 (APK-1), pH 0 to 14 (APK-2)

Measurement mode

continuous

Sensor design

Flow-through, free draining

Recording and viewing the archive of abnormal situations

Armoured glass

Possibility of remote location of the hydraulic block from the indication unit

Yes, up to 1,000 meters

Automatic control of H-filter depletion

Armoured glass

Calibration methods

On chemanalysis, on buffer solutions (AIC-2)

Power supply voltage

187 to 242 VAC, 24 to 46 VAC (optional), 21.6 to 26.4 VDC (optional)

Output interfaces

Current outputs, RS-485, Ethernet, dry contact relays, HART

Chemicals for operation

Not required (AIC-1)

Temperature compensation available

Armoured glass

Number of channels

The way information is presented

Display

Principle of action, method

Contact conductometry, potentiometry

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
