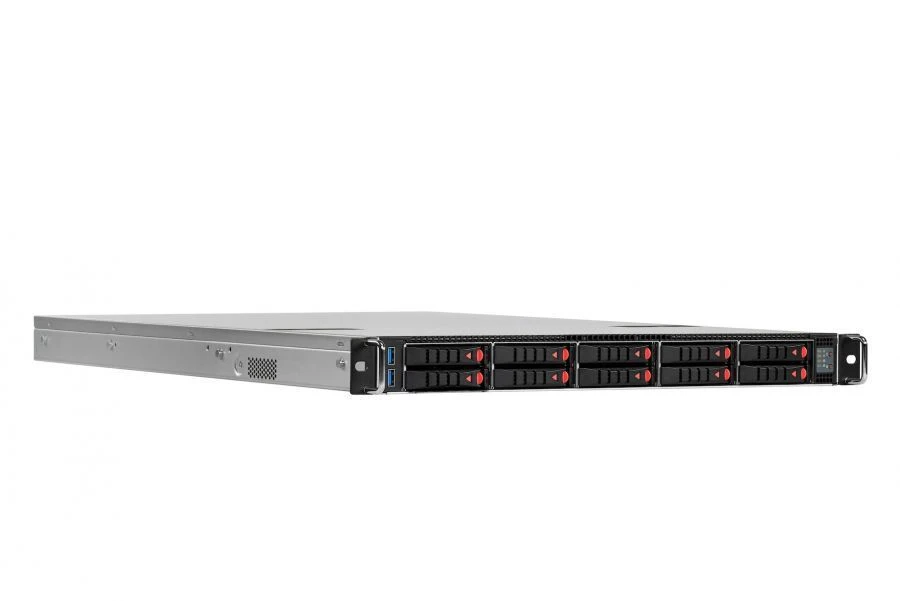

Compact Dual-Processor Server for Rack Mount BULAT BS-102 for High-Density Applications

Data Processing Systems

Manufacturer:BULAT LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The BULAT BS-102 dual-processor compact rackmount server is designed for building infrastructure solutions with a high density of computing resources

Specifications

Operating temperature range

5...40 °C

Power supply voltage

AC: 100 to 127; AC: 200 to 240; DC: -36 to -75V

Socket MP

2xFCLGA3647

MP form factor

eATX

MP chipset

C622

Expansion slots

1 PCIe 3.0 x16 FHHL slot

SATA interface

Armoured glass

Frequency of OP operation

up to 2933 MHz

Hard disks

up to 2400 GB

SSD SATA SSDs

up to 3,840 GB

Height

43 mm

Width

483 mm

Gubina

680 mm

Special BIOS

BULAT BIOS

Identification and authentication

Got it

Network monitoring and control

BULAT BMC AST2500 with IPMI, GUI, Redfish and Ethernet port; Event Recording; User Management; Hardware Management; Update Management; Power Management

Case

1U under 19" rack

Supply package

Server; Decorative panel with key; Rack mount skid; Cables; Data sheet

Chipset

RAID 3008; PCH C622; BMC AST2500

Processor

Intel Xeon Silver 4110, 8 Cores, 2.1 GHz, L3 = 11 MB, 85 W, RAM = 2400 MHz

Type of storage

SAS/SATA, HDD/SSD, 7mm-15mm, 2.5""; PCIe/SATA, SSD, 2280, M.2

Network card

Integrated Ethernet 2 10Gbps SFP+ ports RTL8201EL

Additional features

PCIe slots for Ethernet, Fiber Channel, HBA, InfiniBand, HBA RAID, GPU card installation

Features

Integrated 12Gbps SAS/SATA RAID, 8e RAID 0,1,1E,10; AC-DC, DC-DC power supplies; Front decorative panel with key locking

I/O ports

One RS-232 port for output to console; One VGA port for output to monitor

Interface connectors

Two USB 3.0 ports on the front; Two USB 3.0 ports on the back; One 10/100 Mbps RJ45 port for BMC management; Two 10 Gbps SFP ports for connecting SFP+ modules

Power supply

AC-DC 650/750 W; DC-DC 650 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
