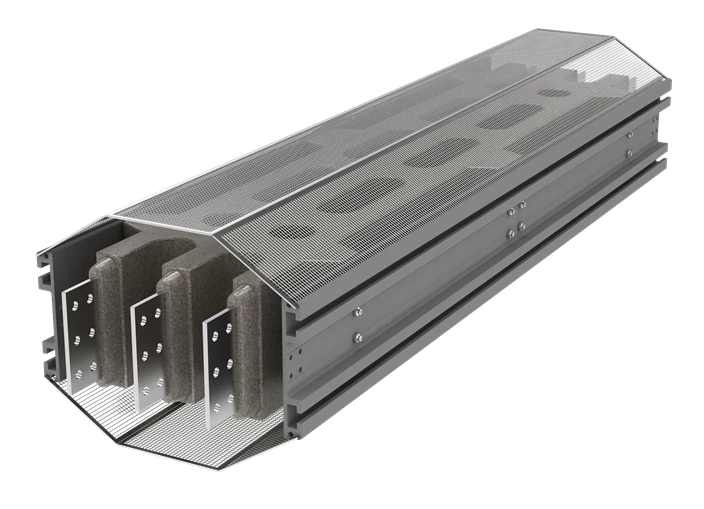

Complete Busbar with Cast Insulation for Up to 10000A and 20kV

Complete Busbar with Cast Insulation for Up to 10000A and 20kV

Brand: RTK-ELEKTRO-M

$3,000 - $18,000 USD

MOQ: 1 pieces

Key Features

Rated current: 1600 to 10000

Nominal voltage: 0.4 to 24 billion m³

Conductor material: Copper, aluminum

Degree of protection IP: 68

Supplier Information

RTK-ELECTRO-M LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

TKLS type moulded current conductors are designed for transmission and distribution of electric power in low and medium voltage systems.
TKLS current conductors are a unique development, which is based on insulating parallel copper conductive busbars of rectangular cross-section in a protective compound. The insulating material of the special compound is produced using a casting method with saturation of inert material particles with a fine-grained structure.
Such insulation has excellent dielectric characteristics and high mechanical strength.
