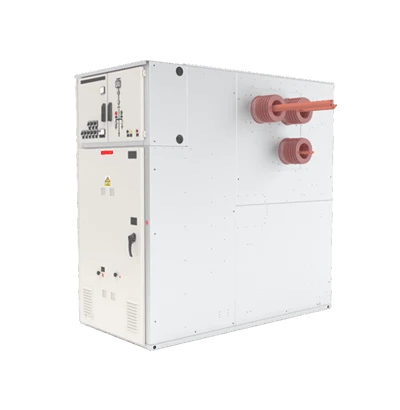

Complete Distribution Device "Classica" D-40P for 35kV Energy Distribution

Available for Import

Classica D-40P Complete Distribution Device for Efficient 35kV Energy Distribution

High Voltage Switchgear

Manufacturer: ETZ VECTOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

GIS "Classic" series D-40P are designed to receive and distribute electrical power of three-phase alternating current frequency of 50 Hz rated voltage of 35 kV in networks with isolated or grounded through arc suppression reactor or resistor neutral. Switchgear is used as switchgear, transformer substations, including complete and containerised, voltage 110/35/6(10) kV, 110/35 kV, 35/6(10) kV and 35/0,4 kV, as well as distribution points. Switchgear cabinets can be used to expand existing switchgear in service and dock with them through the transition cabinets or without them. GIS are designed for installation in power installations with a voltage of 35 kV and are manufactured in two types: with upper busbar system; with lower busbar system.

Specifications

Height

2460 mm

Width

1200 mm

Length

2500 mm

Rated voltage (line voltage)

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV

Highest operating voltage (line voltage)

40.5 kV

Rated current of main circuits of switchgear cabinets

1250 A

Rated current of busbars

1250 A

Rated tripping current of the circuit breaker integrated in the switchgear cubicle

16000 A

Thermal resistance current of main circuits of switchgear cubicles

25000 A

Thermal endurance current flow time of main circuits

Grounding circuit thermal resistance current flow time

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
