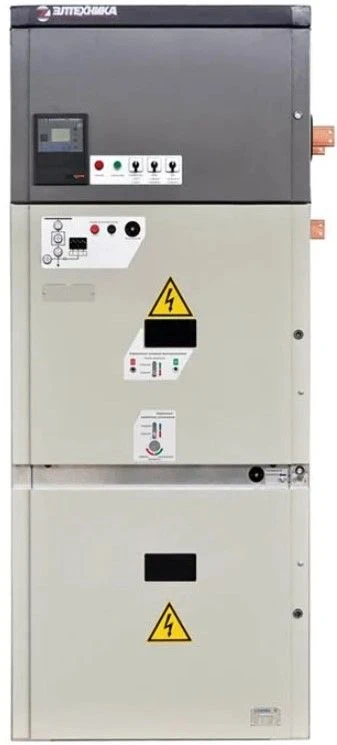

Available for ImportComplete Switchgear Unit Series Volga 10/20kV for Power Distribution
Manufacturer:ELTEHNIKA OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Complete switchgear series "Volga" is designed for distribution of electrical power of three-phase alternating current with frequency of 50 Hz, rated voltage of 10, 20 kV in networks with isolated or earthed through arc suppression reactor or resistor neutral
Specifications
Width
650...1000 mm
Height
2000...2370 mm
Depth
Up to 1700 mm
Nominal voltage
10...20 kV
Highest operating voltage
12...24 kV
Rated current of main circuits of GIS
630...4000 A
Rated current of busbars
1600...4000 A
Rated current of current transformers
100...4000 A
Rated tripping current of the circuit breaker
20000...40000 A
Thermal resistance current
20000...40000 A
Electrodynamic resistance current
51000...102000 A
Rated voltages of control and signalling circuits, at direct current
110...220 V
Rated voltages of control and signalling circuits, at alternating current
100...220 V
Service life at least
30 year
Degree of protection according to GOST 14254-96
IP31
Duration of thermal endurance current flow of main current-carrying circuits
3
Duration of thermal resistance current flow of earthing circuits
1
Weight
up to 1,200 kg
Seismic resistance
9 on MSK-64 scale points
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
