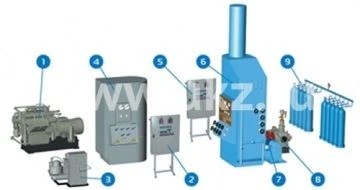

Comprehensive Air Cleaning and Drying Unit MOUkO for High-Pressure Applications

Special Purpose Equipment

Manufacturer: UKZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for cleaning from carbon dioxide, oil, hydrocarbons and dehumidification of high pressure air coming from the compressor

Specifications

Voltage

380 V

Weight, not more

2050 kg

Service life, at least

20 year

Capacity, m3

252

Working pressure, not more, MPa

20 MPa

Air temperature at the outlet of the purification unit, max.

14 °C

Adsorber operating time in cleaning mode, hours max.

Time of adsorbent regeneration, not more than hours

Operating time of adsorbent before its replacement, years

2 year

Capacity of one cylinder, litres

160 l

Overall dimensions of the unit, height, max.

2450 mm

Overall dimensions of the block, width not more than

1460 mm

Overall dimensions of the unit, length, max.

1450 mm

Degree of purification from carbon dioxide, residual concentration of CO2, cm2/m3 no more than

Quantity of regenerating gas

100...120

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
