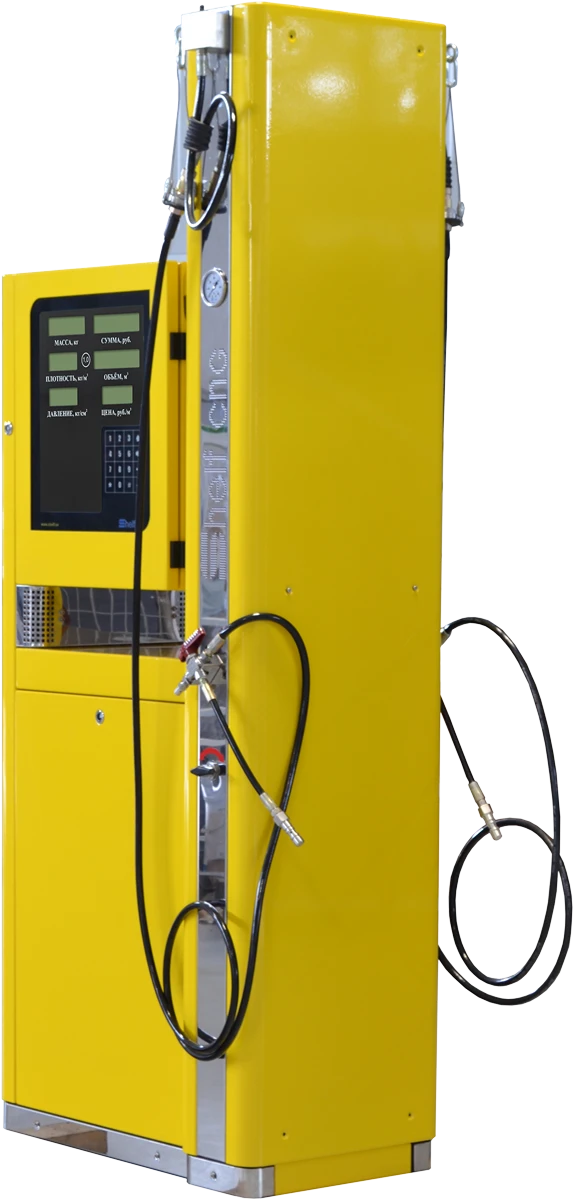

Compressed Natural Gas Dispensing Columns "Shelf...CNG" for Accurate Measurement

Columns for compressed natural gas "Shelf...CNG" are designed for measuring the mass of compressed hydrocarbon gas (methane) in accordance with GOST 27577 (hereinafter - gas), when it is released into cylinders of motor vehicles and mobile gas filling stations. The columns can be used as a part of automobile gas-filling compressor stations (hereinafter - AGFCS) for commercial settlements during gas dispensing. Technical characteristics: Maximum gas flow rate - 30 kg/min.

Minimum gas flow rate -2 kg/min. Minimum gas delivery dose - 4 kg. Maximum working pressure: for motor vehicles 20,0 MPa.

• - for PAGZ 24.99 MPa.

Maximum output pressure of gas filling:

• - for motor vehicles - 19.6 MPa.
• for PAGZ - 24.5 MPa.

Power consumption - not more than 0.26 kV-A Power supply voltage - from 207 to 253 V. Frequency - from 49 to 51 Hz. Speakers must operate in manual or remote mode (via exchange protocol) with control...
