Contact Butt Welding Machine MSO-606LG for Efficient Metal Welding

Electric Welding Machines

Manufacturer: KSLIM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

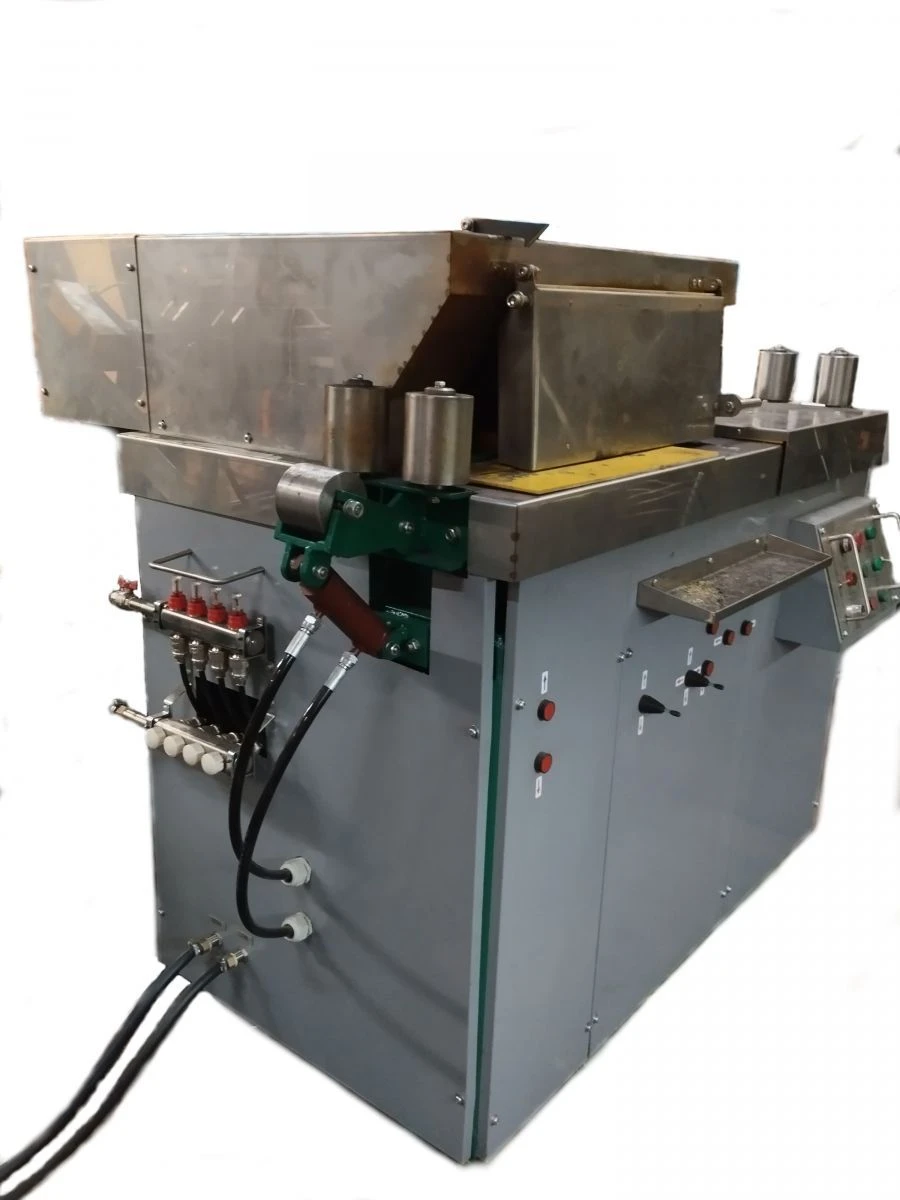

Machine of contact butt welding MSO-606LG UHL4 is designed for contact butt welding with continuous melting and melting with preheating of rolled metal, mainly of compact cross-section. In the welding machine MSO-606LG the value of clamping and precipitation force is set automatically from the operator's panel, which reduces the time of readjustment for welding of workpieces of different diameters. The machine should be operated in closed premises at an altitude of not more than 1000m above sea level at the temperature of cooling water from plus 5°C to plus 25°C.

The machine is manufactured in UHL4 version for operation in temperate climate areas at ambient air temperature from plus 1°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C. Type of welding current-variable; Type of drive for clamping of workpieces and precipitation - hydraulic; Force of clamping of workpieces - 16000 daN; Welded cross-sections:Low carbon steel: 113...2000 mm²; Low alloy steel: 113...1017 mm².

Specifications

Type of product according to PP RF 616

Machine for resistance butt welding

Rated welding current

20000 A

Operating voltage

380 V

Minimum welding current

3000 A

Power

320 kW

Type of welding voltage regulation

step/phase

No-load voltage

6...9 V

Type

butt welding

Length

2000 mm

Width

800 mm

Height

1500 mm

Maximum welding current

30000 A

Type of welding current

Variable

Frequency of supply voltage

SBVVBG

Contact welding

Joint

AC mains supply voltage

380 V

Mains frequency

SBVVBG

Equipment

SHU-351M

Modes of operation

Impulse

Technical capacity, cycle/min

Load Duration (LL)

SBVVBG %

Mark

MSO-606LG

Required mains voltage

380 V

Weight

1500 kg

Highest secondary current

40000 A

Rated continuous secondary current

10000 A

Highest short-circuit capacity

320

Power at SP=50%

Nominal electrode compression force

160000

Machine weight

2000 kg

Dimensions

2000*800*1500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
