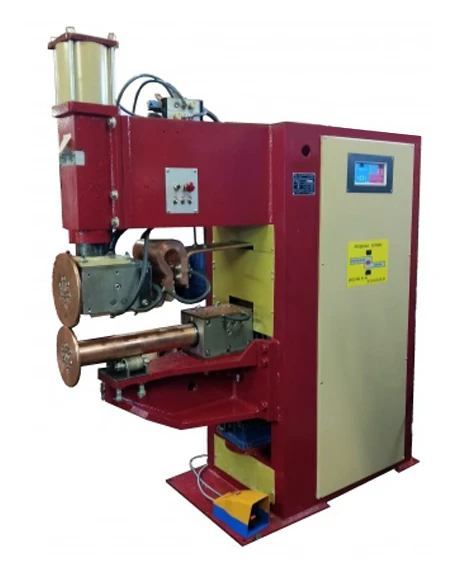

Contact Seam Welding Machine MSh-3207L for Low Carbon Steel Applications

Electric Welding Machines

Manufacturer: KSLIM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine of contact seam welding MSH-3207L UHL4 is used for AC welding of parts made of low-carbon steels. Parts intended for welding should be free of oxide films and contaminants preventing welding. The machine MSH-3207L should be operated in closed premises at an altitude of not more than 1000m above sea level at the temperature of cooling water from plus 5°C to plus 25°C. The machine is manufactured in UHL4 version for operation in areas of temperate climate at ambient air temperature from plus 1°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C. Welding current - variable; Drive welding force - pneumatic; Nominal compression force 1300 daN; Linear welding speed - from 0,4-6,0 m/min Control system - welding controller on choice; Welded thicknesses: Low carbon steel - from 0,3+0,3 to 3,0+3,0; Stainless steel - from 0,3+0,3 to 2,5+2,5

Specifications

Type of product according to PP RF 616

Machine for resistance seam welding

Rated welding current

20000 A

Power

220 kW

Minimum welding current

3000 A

Modes of operation

continuous/pulse

Dimensions

2000*800*2200 mm

Stroke of the upper electrode

105 mm

Machine weight

1300 kg

Departure

800 mm

Load Duration (LL)

80 %

Type of welding current

Variable

Weight

1300 kg

AC mains supply voltage

380 V

Mains frequency

SBVVBG

Type of welding voltage regulation

step/phase

Equipment

RKM-1502M

Mark

MSH-3207L

Length

2000 mm

Width

800 mm

Height

2200 mm

Technical capacity, cycle/min

Maximum welding current

30000 A

Frequency of supply voltage

SBVVBG

Required mains voltage

380 V

No-load voltage

6...9 V

Type

Seam welding machine

Highest secondary current

32000 A

Rated continuous secondary current

22000 A

Highest short-circuit capacity

290

Power at SP=50%

285

Nominal electrode compression force

13000

Nominal solution

180 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
