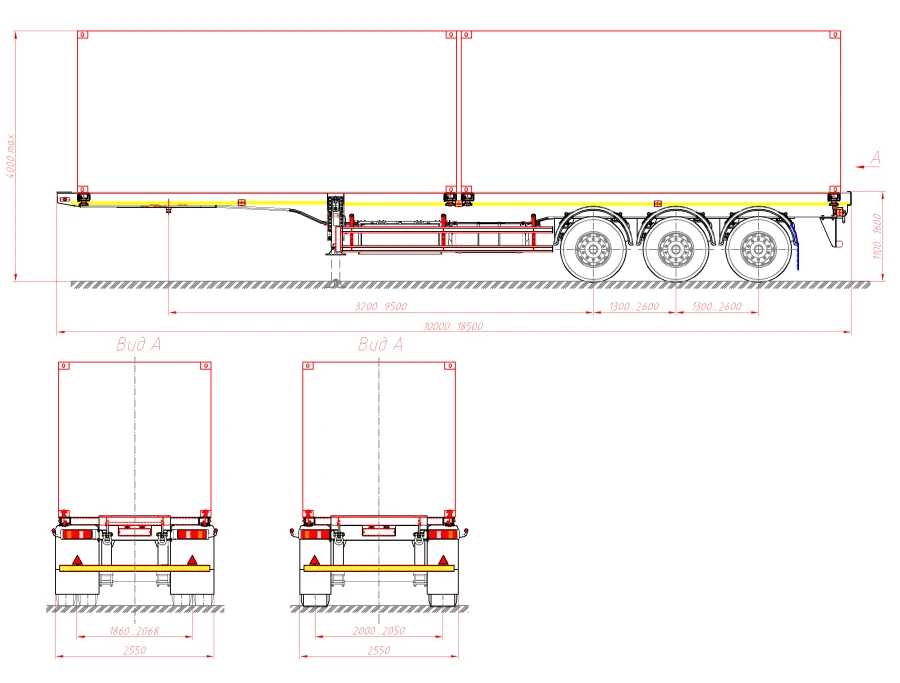

Container Transport Semi-Trailer 98134V with Load Space Framework

Available for Import

Container Transport Semi-Trailer 98134V for Safe and Efficient Cargo Transportation

Heavy Duty Trailers

Manufacturer:NOVOSIBARZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for transporting containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies intended for transporting dangerous goods. Technically permissible maximum mass of the vehicle is 48-60 tonnes. Loading space - load-bearing frame.

Coupling pin with a diameter of 50.8 mm or 88.9 mm. Axles 12 tonnes. Plant Ltd.

Tyres 11 R22,5; 12,00 R20; 275/70 R22,5; 295/80 R22,5; 315/70 R22,5; 315/80 R22,5; 385/55 R22,5; 385/65 R22,5 produced by "Cordiant" JSC / "Nizhnekamsk Tyre Plant CMK" LLC / "Nortek" LLC / "Omskshina" JSC. Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver manufactured by OOO TD Avtotechnology.

Lighting equipment by OOO "Atlanta". Floor level crane of "VBK Vostok" Ltd.

Specifications

Type of semi-trailer

Container ship

Gross weight

60 t

Base machine type

truck

Climatic version

UHL

Number of axles

3 pcs

Maximum height

4000 mm

Width

2550...3300 mm

Maximum length

18500 mm

Axle load capacity

10...12 t

Rear track

1860...2068 mm

Front track

1860...2068 mm

Base

3200...9500+1300...2600+1300...2600

Scope of application

Designed for transportation of construction and road equipment and other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies designed for transportat

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Ergonomic parameters

Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Vehicle kerb weight

6000...18000 kg

Technically permissible maximum mass of the vehicle

48000...60000 kg

Technically permissible maximum load on the coupling ball bar

17652-23536

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
