Available for Import

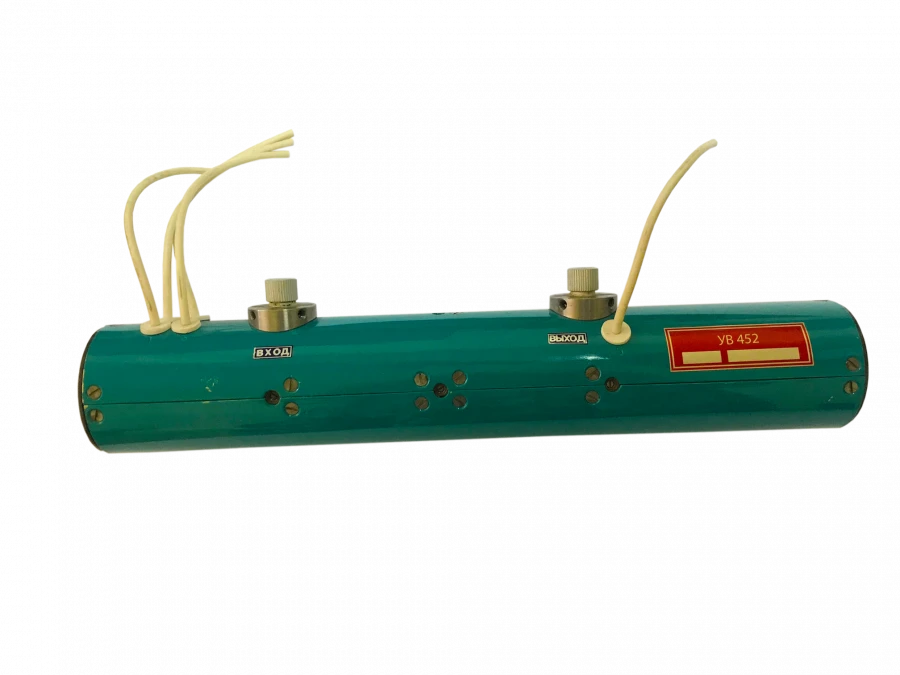

Continuous Wave Lamp UV-452A for Microwave Signal Amplification

Microwave Tubes & Amplifiers

Manufacturer: PLUTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Running wave lamp (RWL) UV-452D

Description

The running wave lamps UV-452A of continuous action, packetised metal-ceramic construction, are intended for operation as an amplifier of microwave signal in the equipment of national and economic purpose.

Specifications

Filament voltage

6...6.6 V

Filament current

2.1...2.5 A

Weight

1.5 kg

Dimensions, DxWxH

332x75x58 mm

Gamma percent MTBF

500

Deceleration system current

0.015 A

Collector current

0.2 A

Decelerating system voltage

5.8...6 kV

Anode voltage

6.2...7 kV

Gain factor

30.6

Output power

115 W

Operating frequency range

6.75...10.35

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
