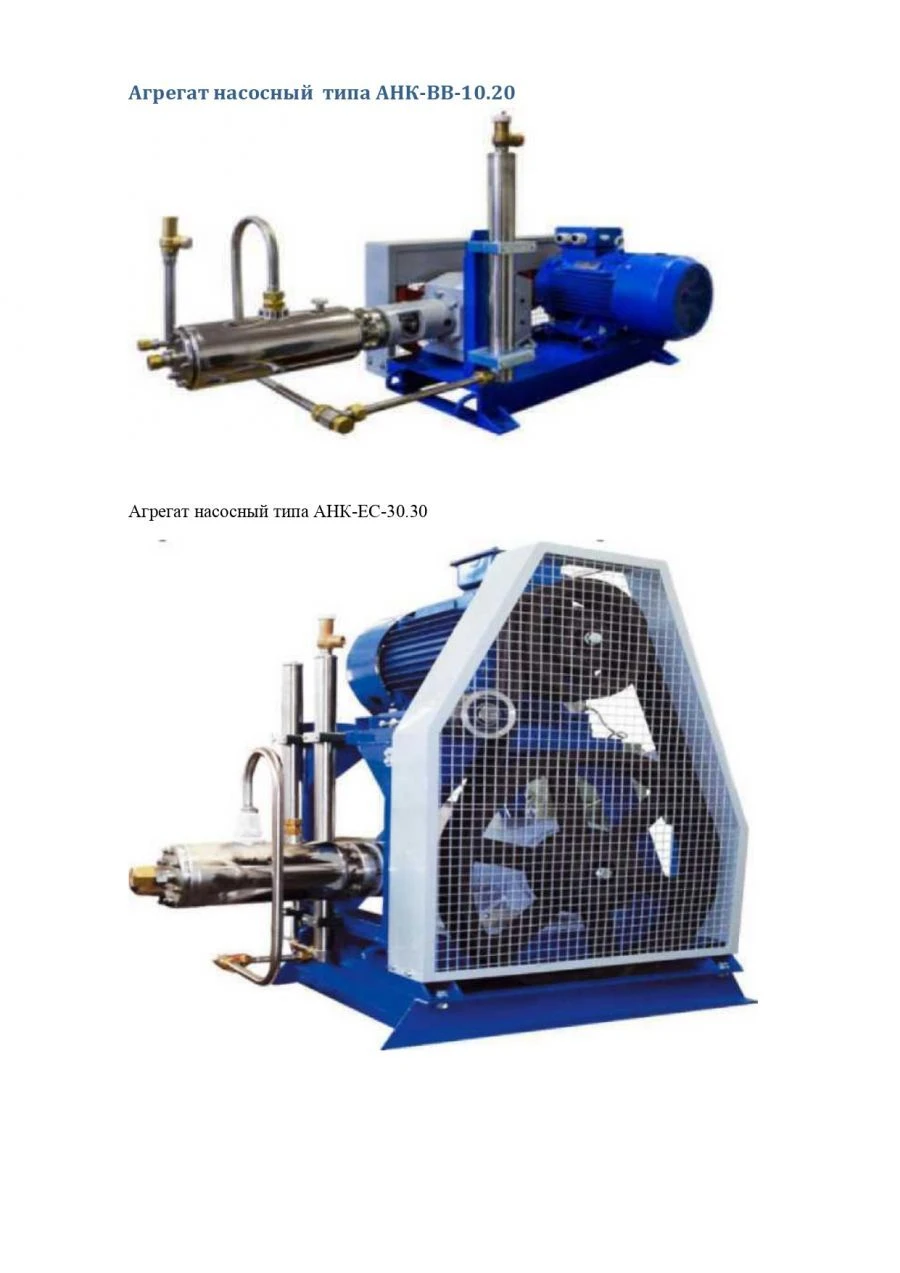

Cryogenic Pumping Units of Type ANK Available for Import

Cryogenic Pumping Units of Type ANK for Gasification Applications

Dosing Pump Systems
Manufacturer: PROMGAS-TECHNOLOGY LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

AnK type units are used as part of gasification plants and are designed for pumping liquefied cryogenic product under overpressure. The unit consists of the following main parts: <ul> <li>- frame;</li> <li>electric motor;</li> <li>driving mechanism;</li> <li>cylinder group;</li> <li>pulsation compensator.</li> </ul>The units can be manufactured with one or several discharge line outlets, in left or right version. Main technical parameters of ANK: <ul> <li>- capacity, l/min: in the range of 5 - 110</li> <li>pressure, MPa: in the range 0.63 - 100</li> </ul>Maximum suction pressure - 2.0 MPa.

Permissible cavitation reserve NPSHr - 1.0 m. The ANK delivery set includes a single set of spare parts.

Specifications

Type
ANC - cryogenic pumping unit
Service life
20 year
Inlet temperature
-200...-120 °C
Discharge temperature
-200...-60 °C
Installed life before overhaul
5
Performance control method
Frequency control (ANC motor revolutions): 40-100%
EFFICIENCY
Flat grinder, Specialised grinder %
Suction connection diameter
10...150 mm
Rotational speed
1000
Inlet pressure
2 MPa
Discharge pressure
0.63...100 MPa
Rated motor power
1500...300000 W
Explosion protection version
Ex II Gc IIA T1 X
Corrosion resistance version
SBVVBG %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
