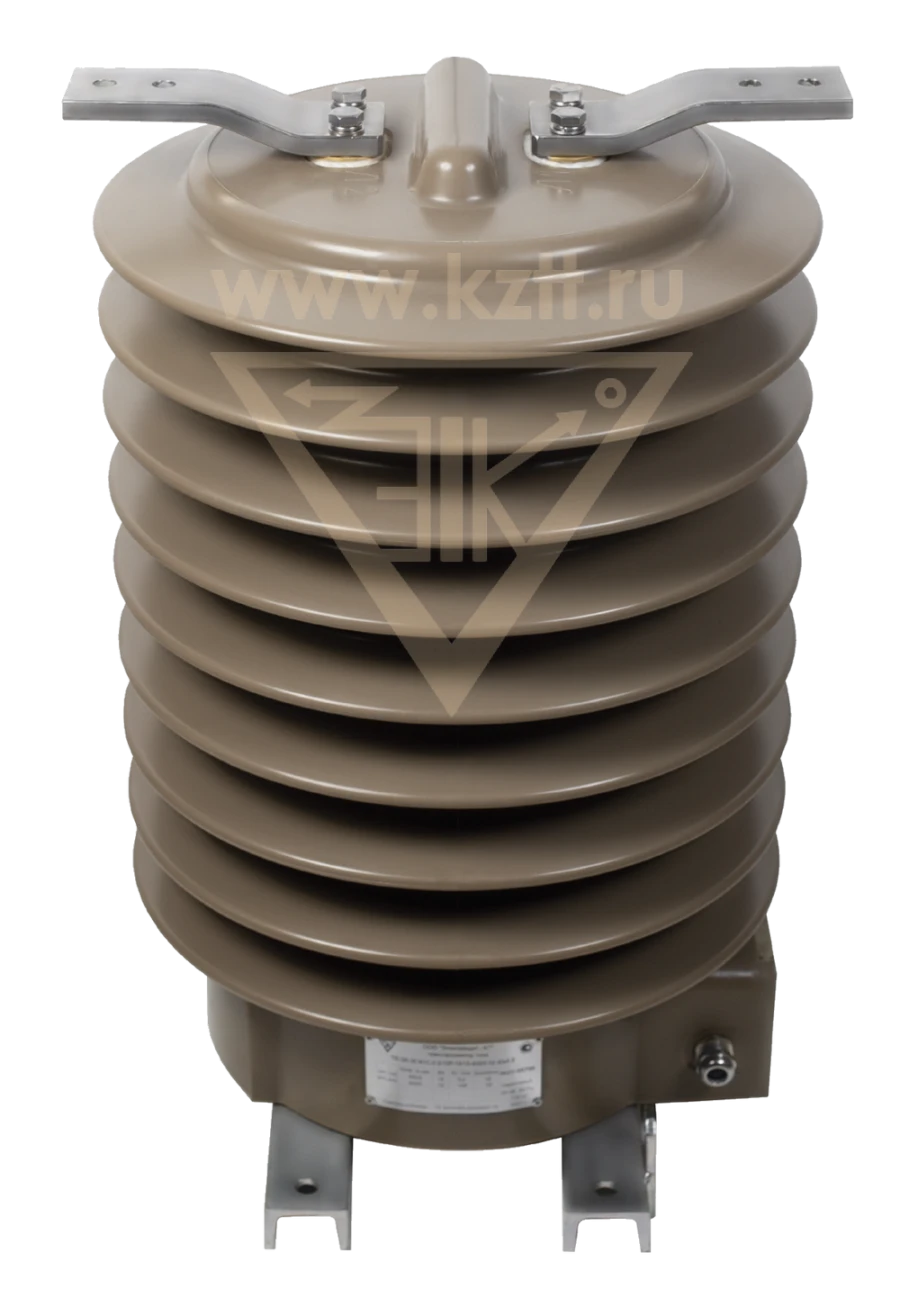

Current Transformer TL-EK-35 M1 for Outdoor Use Available for Import

Current Transformer TL-EK-35 M1 for Accurate Power Measurement in Outdoor Applications

Low-Power Electrical Transformers
Manufacturer: ELECTROSHIT-K° LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

TL-EC-35 current transformer is designed for installation in complete switchgear (switchgear) outdoor installation and is a component product.Current transformer provides signal transmission of measurement information to measuring devices and devices for protection and control, to isolate the circuits of secondary connections from high voltage in electrical installations of alternating current for voltage class up to 35 kV.Climatic design UHL placement category 1, 1.1 according to GOST 15150-69.

Specifications

Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3; 5; 10
Number of secondary windings
1 to 4
Highest operating voltage, kV
40,5
Rated voltage, kV
Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording
Rated primary current, A
5-1600
Rated secondary current, A
1; 5
Overall dimensions, (DxWxH), not more than
400x400x610
