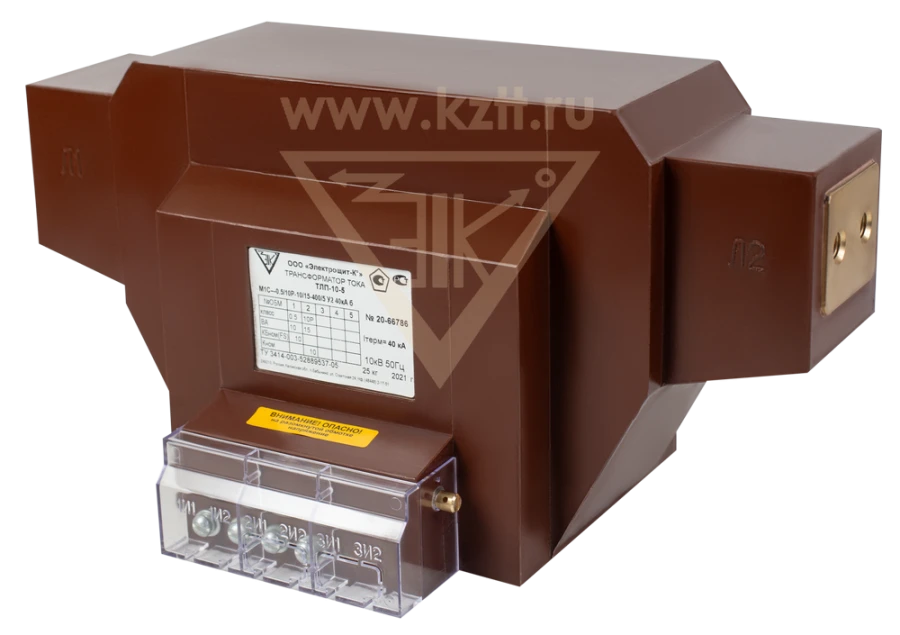

Current Transformer TLP-10-5 M1 for Efficient Power Distribution Applications
Manufacturer:
ELECTROSHIT-K° LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
TLP-10-5 current transformer is designed for installation in complete switchgears (switchgear) of indoor and outdoor installation, as well as prefabricated chambers of single-sided service (CSR) and is a component part.Current transformer provides transmission of measuring information signal to measuring devices and protection and control devices, for isolation of secondary connection circuits from high voltage in electrical installations of alternating current for voltage class up to 10 kV.Climatic version U, UHL or T, category
Specifications
Overall dimensions, (DxWxH), not more than
400x190x200
Rated secondary current, A
1; 5
Rated primary current, A
5-800
Rated voltage, kV
10
Highest operating voltage, kV
B1/B8 2100/900 MHz
Number of secondary windings
Up to 4
Accuracy classes of secondary windings for measuring and metering according to GOST 7746
0,2S; 0,2; 0,5S; 0,5; 1; 3
Accuracy classes of secondary windings for protection according to GOST 7746
5P; 10P
Accuracy classes of secondary windings for protection according to GOST R IEC 61869-2
5RR; 10RR; TPY; TPZ; PX; TPX; PX; PXR
