Available for Import

DC Busbar System SHMAD 1600-5000A IP44 for Electrical Connections

Electrical Circuit Protection

Manufacturer: SOEMI OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

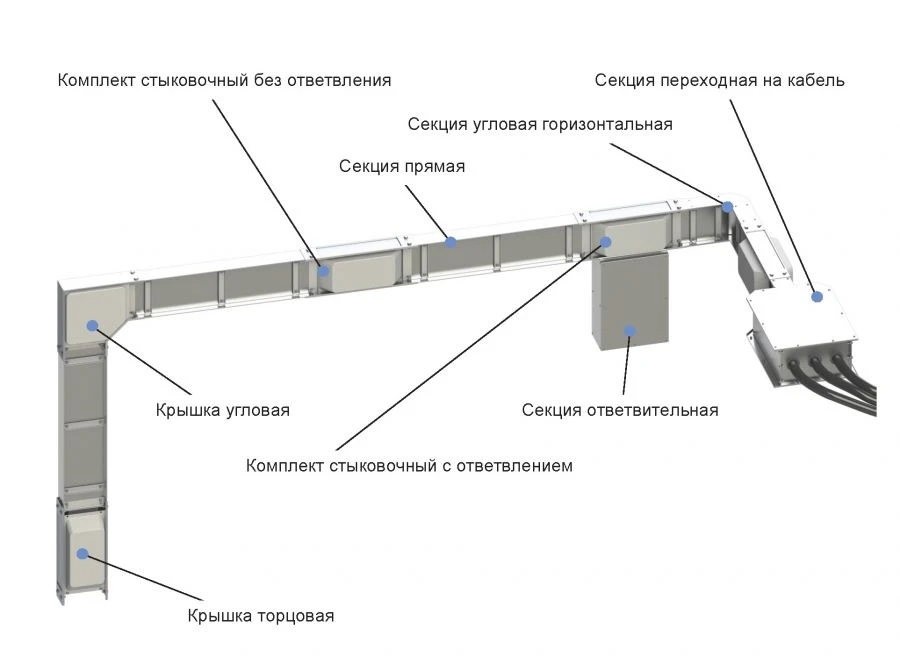

SHMAD SOEMI DC trunk line is designed for making electrical connections of electric machine or static converters with motors of drives and mechanisms of rolling mills, as well as for making DC electrical networks in general purpose industrial installations with voltage up to 1200V, with a branch for supplying current collectors with current up to 1000A.

Specifications

Length of straight section

0.75 m

Seismic resistance

7...9 points

Connection of busbars at section joints during installation

welded/coupled/combined

Fire resistance

180

Tire material

AD0 aluminum

Installed failure-free operating time, not less than

13500

Installed service life, not less than

20 year

Protection degree of busbar line assembled in line according to GOST 14254

IP44

Cross section of the phase conductor

3840 mm²

Rated voltage, max.

1200 V

Rated current, at ambient temperature + 45°C

1000...5000 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
