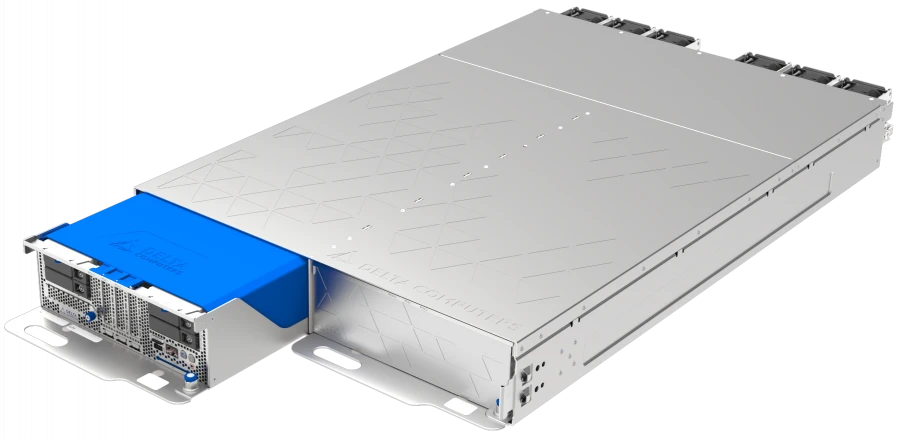

Delta Serval L6RL.R100.F07 Server for Data Processing and Storage

Available for Import

Delta Serval L6RL.R100.F07 Server for Advanced Data Processing and Storage

Data Processing Systems

Manufacturer: DELTA COMPUTERS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The Delta Serval L6RL.R100.F07 delivers enterprise-grade hyperconverged infrastructure for mission-critical medical, financial, and research facilities. Built with redundant cooling systems, hot-swappable components, and HIPAA/SOC 2 compliance architecture, this server rack ensures uninterrupted operations in regulated environments. Heavy-duty construction supports 24/7 workloads with exceptional thermal management.

Requires dedicated climate-controlled server rooms with reinforced flooring rated for 2,000+ lb loads and three-phase 208V/480V power infrastructure. Advanced security features include encrypted storage, dual-redundant power supplies, and integrated monitoring systems. Installation demands certified technicians; ideal for medical institutions, data centers, and enterprise compliance operations requiring maximum uptime and data integrity.

Specifications

Type of RAM

DDR5, 8 channels per processor, RDIMM/LRDIMM

Connector for OCP 3.0 expansion card

PCIe 5.0 x 16 (specified per VM)

Platform management interface

Ethernet 10/100/1000 Mbps via RJ45 port (specified for one VM)

I/O ports

1 x USB 3.0, 1 x Mini-VGA, 1 x PWR button, 1 x UID button, Reset button (specified for one VM)

Expansion slots, HHHL

2 x PCIe 5.0 x 16 or 1 x PCIe 5.0 x 16, 2 x PCIe 5.0 x 8 (specified for a single VM)

Drive slots, 15 mm

4 x hot-swappable 2.5" SSD (U.2 NVMe) (specified for one VM)

RAID support

1 x Intel VROC connector

USB connectors (if service board is available)

2 x USB 3.0

Interface for debugging (if service board is available)

1 x USB Type-C

BMC controller

ASPEED AST2600

Remote control

SNMP, SMTP, IPMI 2.0, Redfish API, KVM, "Delta BMC" microcode

Weight

Maximum 10 kg (specified for one VM)

Form factor

2OU, OCP Rack

Power supply

From centralized busbar, OCP

Number of cooling fans

6 pcs. with hot-swap function and indication

Number of processor sockets

2 connectors (specified for one VM)

Processor generation

Intel Xeon Scalable 5th Generation (Emerald Rapids) or Intel Xeon Scalable 4th Generation (Sapphire Rapids)

Processor connection interface

Intel® Ultra Path Interconnect (UPI) - 4 lines

Processor chipset

Intel® C741

Maximum processor heat dissipation (TDP)

350 watts

Maximum RAM capacity

8 TB RAM (specified for one VM)

Number of RAM slots

32 (specified for one VM)

Total server weight

27.2 kg

Dimensions (W x L x H)

536 mm x 926 mm x 95 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
