Available for Import

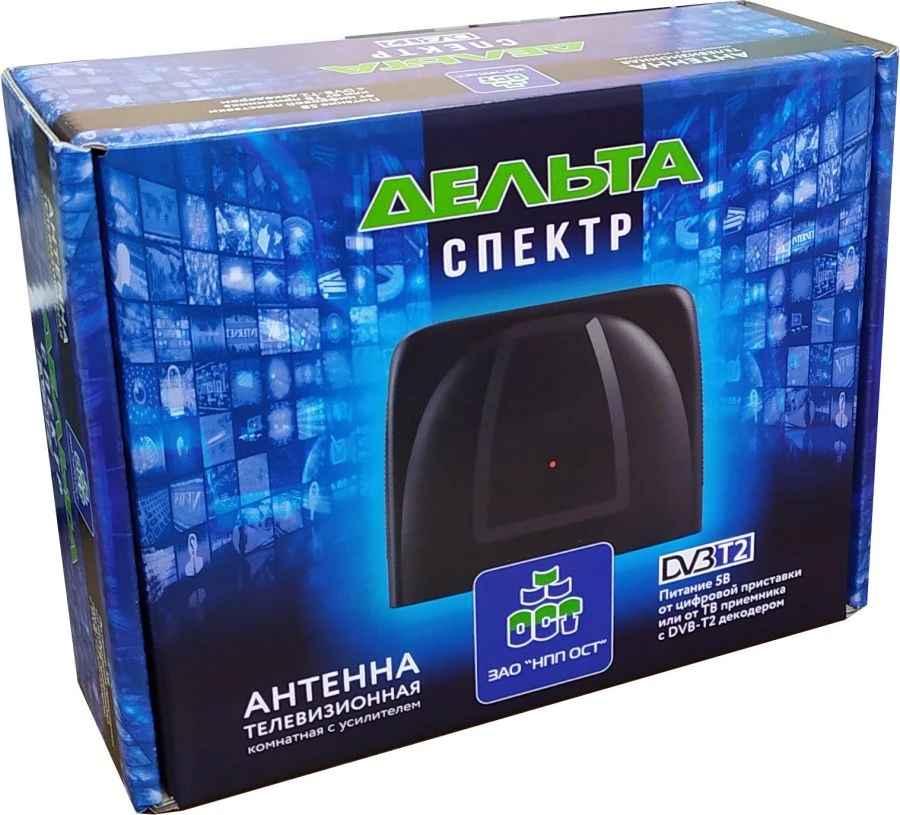

Delta SPECTR UHF Decimeter Range Antenna for DVB-T2 TV Reception

Antenna Equipment & Parts

Manufacturer: CJSC NPP OST

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to receive signals of analogue and digital broadcast television standard DVB-T2, transmitted with horizontal polarisation by ground stations in the range of decimetre waves (21-60 TV channels). The antenna is equipped with an in-built broadband amplifier, providing signal level increase and compensation of its attenuation in the antenna cable, improving reception of weak signals. Antennas are designed to operate in the temperature range from 5 to 35 ° C and the limit value of relative humidity of 80% at 25 ° C.

The antenna amplifier does not have its own source and is designed for 5 V power supply, fed through the antenna cable from the source built into the DVB-T2 digital set-top box. Current consumption of the amplifier is not more than 35 mA.

Specifications

Type

decimeter

Internal antenna type

room

Reinforcement type

Active

Type by received frequency range

decimeter

Maximum value of the operating radio frequency range

790

Input impedance

75 ohm

Received signals

decimetric

Gain factor

Maximum operating temperature

30 °C

Maximum wind load

Standing wave coefficient (VSWR)

SBVVBG

Type by orientation

Horizontal

View

room

Connector

Equipment

Antenna

Weight

0.35 kg

Polarization

Horizontal

Power supply voltage

5 V

Mark

Delta

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
