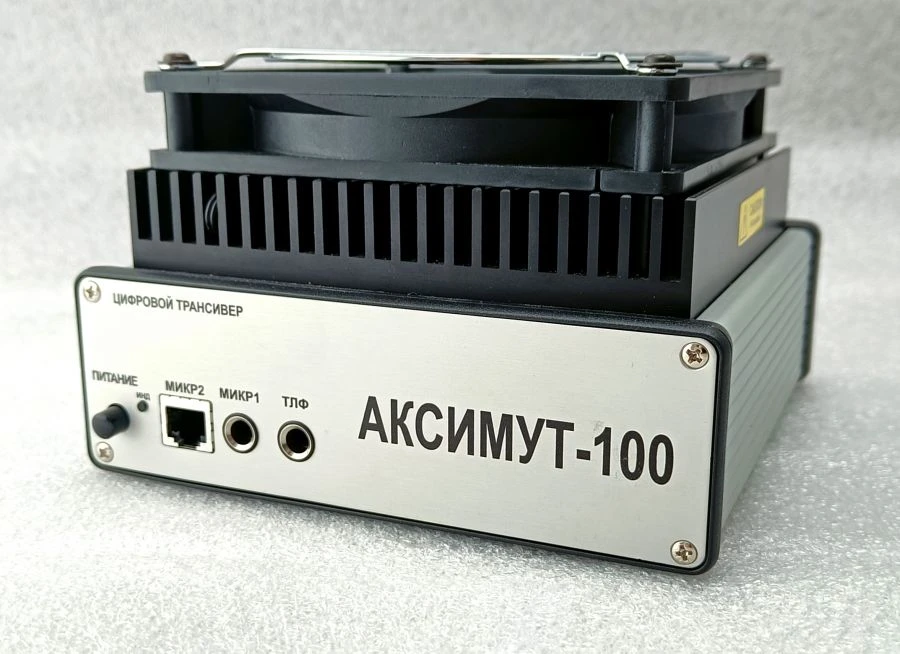

Digital HF Radio Station "Aksimut-100" for Reliable Communication

Communication Devices Hub

Manufacturer: RATEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Digital KV radio station "Aksimut-100" is designed to organise communication lines using digital signals. Structurally, the receiving and transmitting station is designed as a block connected to a computer. The receiving and transmitting station is built on the basis of SDR technology (SDR - software-defined radio) and is a universal transmitting platform.

The principles of direct digitisation of signals in the receive mode and direct digital synthesis in the transmit mode allow the station to be adapted to any task. The types of signals used and the transceiver's operating algorithm can be changed by modifying the software. The main purpose of the product is to work as part of technological networks communication networks.

The radio station can be connected to public communication networks by using the appropriate software. Built-in (optional) receiver of navigation signals of GPS and GLONASS systems allows to organise synchronous digital communication.

Specifications

Principle of construction of the receiving path

Direct digitisation of radio signals

Receiving frequency range

1.6...30

Sensitivity at bandwidth value (0.5 ± 0.1) kHz, nominal input impedance value of 50 and (signal+noise/noise ratio)

3.0E-7 V

Stream IQ resolution

Sampling frequencies

200

Number of program receivers

1 pcs

Single-signal dynamic range in the band 500 Hz, not less, dB ±3dB

130

Two-signal selectivity at interference rejection at frequency ± (100 ± 1) kHz when measured in the filter band 3.1 kHz, not less

100

RF ADC clock frequency

160

RF ADC digit capacity

Internal oscillator instability, max (optional)

± 0,5×10(-6) (± 5×10(-8))

Built-in receiver preamplifier

Operating temperature range

-40 to +70 °C °C

Principle of transmitter signal generation

Straight synthesis

DAC clock frequency

640

DAC digit capacity

Transmitted frequency range

1.6...30

Level of nonlinear combinational distortion of the signal at the output relative to the level of the main oscillation (when a tw

-35

Maximum power output

100 ± 10 W

Maximum data transfer rate

Signal type

CW, SSB, AM, NFM, BPSK, FSK

Dimensions (DxWxH)

185x170x80 mm

Weight, not more

4 kg

Supply voltage range

12...16 W

Maximum current consumption

25 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
