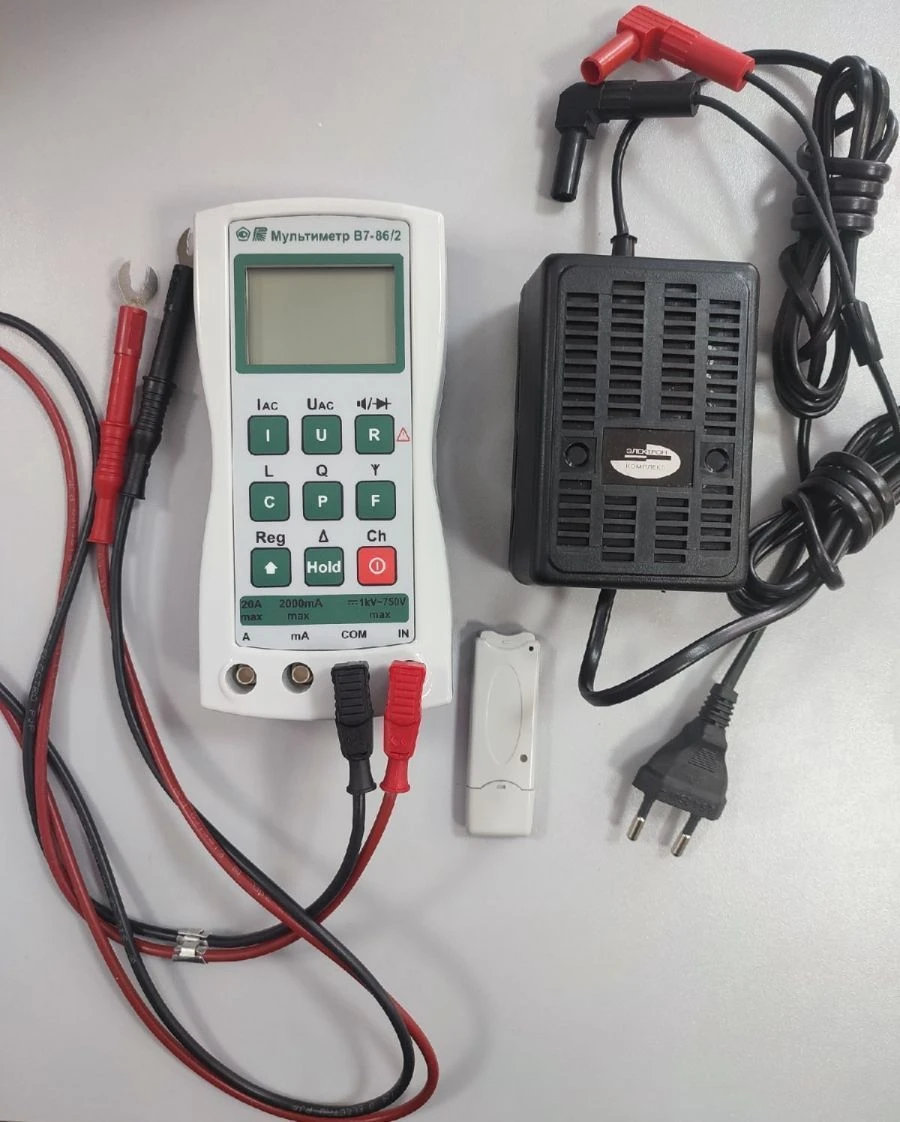

Available for ImportDigital Multimeter V7-86/2 for Accurate Voltage and Current Measurement
Manufacturer:RIP-Impuls LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Multimeter B7-86/2 is designed to measure the basic electrical quantities: voltage and force of direct current, RMS value of voltage and force of alternating current, resistance to direct current, frequency of alternating current, electrical capacitance, inductance. Provides measurement with non-normalised error of total, reactive and active power, power factor and p-n junction testing. B7-86/2-modification with two AA batteries, charger power supply, USB transceiver (wireless interface IEEE 802.15.4 standard) and software..
Specifications
Capacitance measurement, C
-100000000000...0.002
Measuring range of DC voltage, U
-100000...1000 V
Measurement range of AC voltage with frequency from 20 Hz to 10 kHz, U~
0.02...750 V
Measurement range of AC voltage with frequency from 20 kHz to 100 kHz
0.02...200 V
DC resistance measurement, R
-100000...2000000 ohm
DC current measurement range, I
-100000000...20 A
AC current measuring range 20 Hz to 1 kHz, I~
0.0002...20 A
AC current measuring range from 1 kHz to 10 kHz, I~
0.0002...2 A
Measurement of inductance, L
-10000000...0.2
