Disc Aggregator ADF-10D Ф510 for Soil Processing Available for Import

Disc Aggregator ADF-10D Ф510 for Effective Soil Processing and Preparation

Disc Harrows
Manufacturer: KOMZ-EXPORT CJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

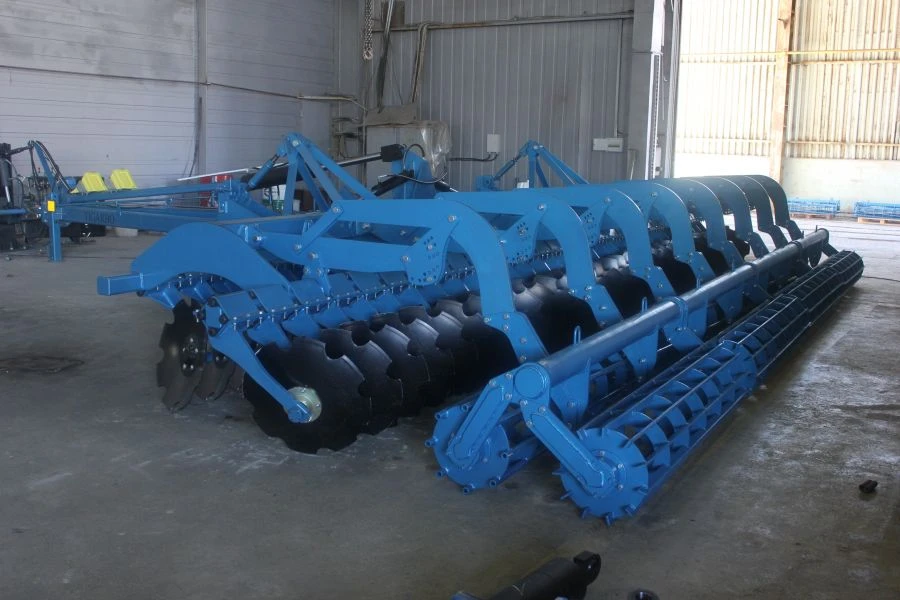

Aggregate disc ADS-10D F510, designed for cultivation of fallow land covered with dense vegetation, layer of perennial grasses, stubble husking after harvesting grain and high-stemmed crops, field bread, preparing the soil for sowing, embedding in the soil high-stemmed siderats. It can be used for cutting soil layers after ploughing and surface cultivation of over-compacted soils. The disc machine has a two-row arrangement of disc working tools, behind which the packer rollers are located. Working tools are spherical discs with cutouts, each of which is mounted on an individual arm with spring suspension. The implement can be coupled with tractors of different traction classes.

Specifications

Type of product according to PP RF 616
Disc harrows
Distance between rows
1060 mm
Weight
9150 kg
Number of implement rows
3 pcs
Material of working elements
Metal
Material of frame structures
Metal
Harrow type
semi-mounted
Working width
10 m
Height
1850 mm
Width
10770 mm
Length
7800 mm
Operating speed
10...16
Capacity per hour
B1/B8 2100/900 MHz
Depth of treatment
2...12 cm
Diameter of working elements
510 mm
Number of working orans
82 pcs
Tractor traction class
6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
