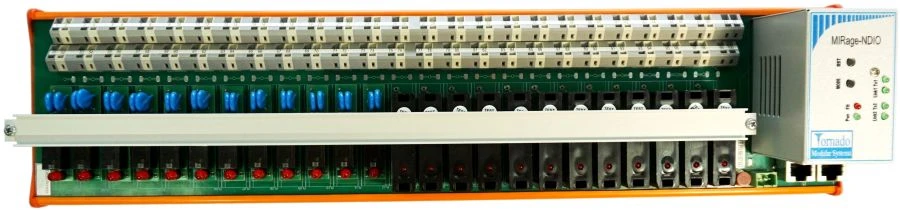

Discrete Input/Output Device with 12 Input Signals 220V AC/DC, Isolated Galvanic Connection

Available for Import

Discrete Input/Output Device with 12 Input Signals for Control Systems

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

MIRage-NDIO devices are designed for input/output of discrete signals in the construction of distributed information and control systems. Reading the states of signals of discrete inputs and issuing control commands to the discrete outputs is performed via a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDIO devices have 12 discrete input (DI) channels of 220 V AC/DC signals and 12 discrete output (DO) channels of signals up to 3 A at 250 V AC or 0.25 A at 250 V DC. DCs have individual galvanic isolation from each other and from the system part.MIRage-NDIO devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of discrete output channels

B1/B8 2100/900 MHz pcs

Request response time at 100 Mbit network speed, no more than

Mechanical design

DIN rail mounting

Interface type

Ethernet 10/100BaseTX - 2 channels

Data transfer rate

100

Data exchange protocol

Modbus TCP/UDP slave

Galvanic insulation

Individual

Overall dimensions

450x108x111 mm

Weight, not more

1400 year

Wago terminal block, conductor cross-section up to

2.5 mm²

Operating temperature range

-25...70 °C

Consumption current, max.

90 mA (excluding submodule current consumption)

External supply voltage (+/- 15%)

24 V

Type of input signals

220 V

Type of output signals

Switched relay contacts

Number of discrete input channels

B1/B8 2100/900 MHz pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
